Vertiv

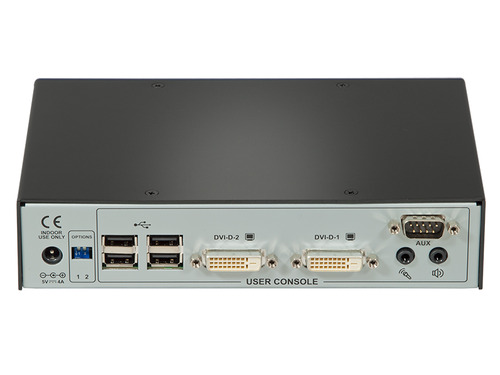

Vertiv Avocent HMX5200R - IP KVM Receiver,USB 2.0 RX Dual DVI-D Audio SFP
Part number HMX5200R-001
HMX RX DUAL DVI-D, USB, AUDIO, SFP
- Eliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network
- High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications
- Centralized Management - Via a single console, including access, desktop pooling and reporting
- Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
- Greater Security - 128bit AES encryption for secure access
- No Dedicated Cabling - Removes the need for dedicated cabling between user and computer
- Digital DVI Video - Up to 2560 x 1600or dual sessions at 1920x1200 each
- USB Support - USB media and most other USB devices including USB keyboard/mouse
- Manufacturer
- Vertiv
- Part number
- HMX5200R-001
- Condition
- New
- Category
- Accessories › Phone & Cellular Accessories
- 1GPA category
- Hardware
Specifications
| Type | Receiver |
|---|---|
| Connectivity technology | Wired |
| Maximum digital resolution | 2560 x 1600 pixels |
| Receiver local video port type | DVI-D |
|---|---|
| RJ-45 ports quantity (receiver) | 2 |
| Receiver USB Type-A ports quantity | 4 |
| USB port type | USB Type-A |
|---|---|
| USB 2.0 ports quantity | 4 |
| AC adapter output voltage | 5 V |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | -35 - 70% |
| Compliance certificates | Federal Communications Commission (FCC) |
|---|
| Weight | 1.23 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
