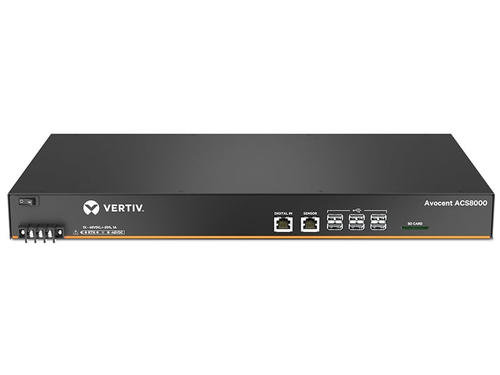

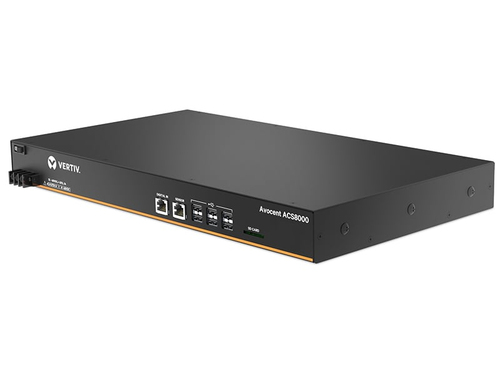

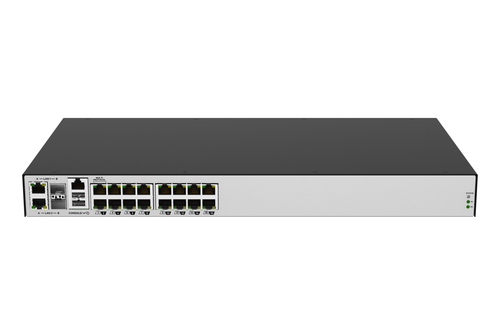

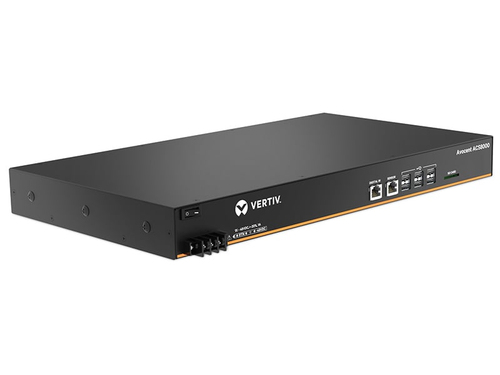

16-PORT ACS8000 CONSOLE SYSTEM WITH SINGLE DC POWER SUPPLY
Internal memory: 1000 MB Flash memory: 16000 MB
Rack mounting
Console port: RS-232
Power source type: DC
Power consumption (typical): 11 W Power consumption (max): 33 W
Manufacturer
Vertiv
Part number
ACS8016SDC-400
Condition
New
Category
Network Devices › Servers
1GPA category
Hardware
Overview
The Vertiv™ Avocent® ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
Specifications
Features
Rack mounting
Yes
Event logging
Yes
Ports & interfaces
Console port
RS-232
Serial ports quantity
16
USB 2.0 ports quantity
8
Ethernet LAN (RJ-45) ports
2
SFP module slots quantity
2
Software
Operating system installed
Embedded LINUX
Weight & dimensions
Dimensions (WxDxH)
438.2 x 241.3 x 44.5 mm
Power
Power source type
DC
Power consumption (typical)
11 W
Power consumption (max)
33 W
DC input voltage
48 V
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC Class A
UL (USA)
CE Class A (EU)
cUL (Canada)
ICES-003 (Canada)
EN-60950 (EU)
VCCI (Japan)
CB
RCM (Australia)
Customs Union (CU)
KCC (Korea)
Memory
Internal memory
1000 MB
Flash memory
16000 MB
Card reader integrated
Yes
Compatible memory cards
SD
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
