Tp Link

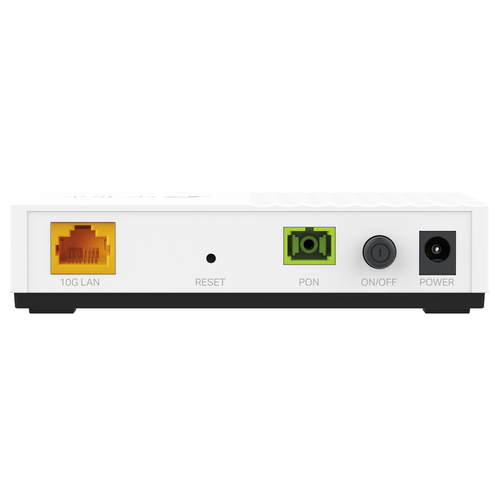

TP-Link 1-Port XGS-PON Terminal
Part number XGZ030
1-PORT XGS-PON TERMINAL 1-PORT XGS-PON SFU ECONET CHIPSET
- Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
- 10G Wired Connections: 1× 10GE LAN port enables ultra-fast network sharing and connections
- Ease of Use: Quick and hassle-free installation with intelligent power-saving
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
- Manufacturer
- Tp Link
- Part number
- XGZ030
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Specifications
| Product type | Optical network terminal (ONT) |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| On/off switch | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
|---|---|
| ITU standards | G.988, G.9907.1 |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Upstream data rate | 10000 Mbit/s |
| Downstream data rate | 10000 Mbit/s |
| Transmission distance (max) | 20 km |
| VLAN support | Yes |
| QinQ VLAN support | Yes |
| Tagged VLAN | Yes |
| Wi-Fi | No |
|---|
| Web-based management | Yes |
|---|---|
| Reset button | Yes |
| Security algorithms | AES |
|---|
| Fiber ports quantity | 1 |
|---|---|
| Fiber optic connector | SC/APC |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Output voltage | 9 V |
|---|---|
| Output current | 0.85 A |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 120 mm |
|---|---|
| Depth | 120 mm |
| Height | 27.9 mm |
| AC adapter included | Yes |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
