TP-Link TL-WR802N wireless router Fast Ethernet Single-band (2.4 GHz) Blue, White
Part number TL-WR802N
N300 POCKET AP ROUTER 2.4GHZ N/G/B
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling*
- Pocket-size – Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
- Manufacturer
- Tp Link
- Part number
- TL-WR802N
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Multiple Operating Modes
Ideal for Home and Travel Use
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.
During Travel
Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.
Hotspot Mode
Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.
At Home
Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.
Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.
Access Point Mode
Create a wireless network for Wi-Fi devices.

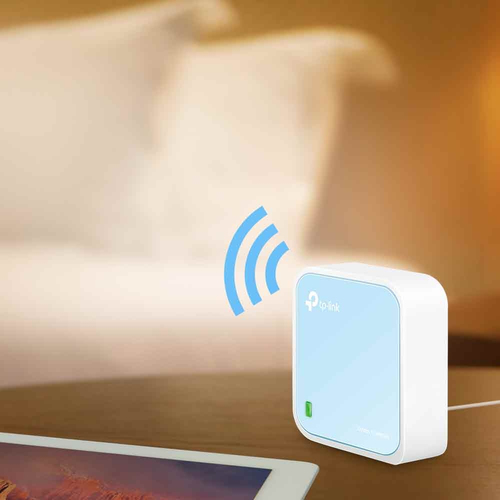

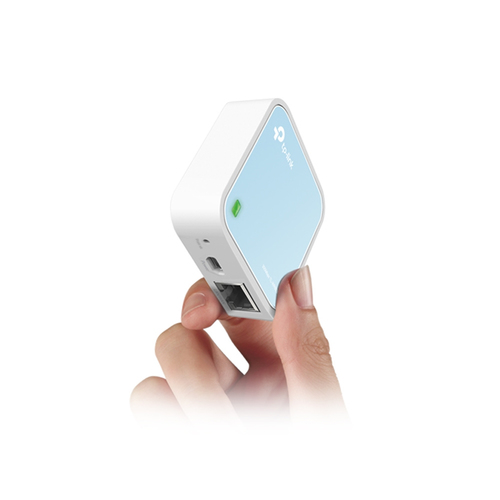

Portable and Compact - Suitable for Home and Travel
The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.
Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.
Specifications
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wi-Fi band | Single-band (2.4 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| VPN Passthrough | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB port | Yes |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Web-based management | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Security algorithms | WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
|---|---|
| Firewall | Yes |
| Firewall security | SPI |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Product colour | Blue, White |
|---|---|
| LED indicators | Activity, LAN, Power, WLAN |
| On/off switch | Yes |
| Product type | Portable router |
| Compliance certificates | Federal Communications Commission (FCC) |
|---|
| Cables included | LAN (RJ-45), USB |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Sustainability compliance | Yes |
|---|
| Antenna design | Internal |
|---|---|
| Antennas quantity | 2 |
| Receive power | 270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER |
| Transmit power | CE: , |
| Built-in processor | Yes |
|---|---|
| Processor cores | 1 |
| Power source type | USB |
|---|---|
| Output voltage | 5 V |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | macOS |
| Width | 57 mm |
|---|---|
| Depth | 57 mm |
| Height | 18 mm |
| Package width | 110 mm |
|---|---|
| Package depth | 109 mm |
| Package height | 73.5 mm |
| Package weight | 240 g |
| Harmonized System (HS) code | 85176990 |
|---|
