Tp Link

TP-Link TL-WN725N network card WLAN 150 Mbit/s

Part number TL-WN725N

TL-WN725N 11BGN 150MB 2.4GHZ WPA WPE WL N USB ADAP NANO REALTEK

Sleek miniature design so small that once plugged in, can be left in a Laptop’s USB port
Speedy wireless transmission at up to 150Mbps ideal for video streaming or internet calls
Advanced Security: Supports 64/128 WEP, WPA, PA2/WPA-PSK/WPA2-PSK(TKIP/AES)
Connect in no time with easy setup utility in 14 languages
Windows 10/8.1/8/7/XP, Mac OS X, Linux

Manufacturer: Tp Link
Part number: TL-WN725N
Condition: New
Category: Network Devices › Wireless Networking
1GPA category: Hardware

Overview

Great Surfing Experience with Nano USB Adapter

As a Wireless N Nano USB adapter, TL-WN725N allows users to connect a desktop or notebook computer to a wireless network at speed of up to 150Mbps, which is ideal for smooth video streaming, voice streaming and online gaming.

Miniature Design Brings Infinite Convenience

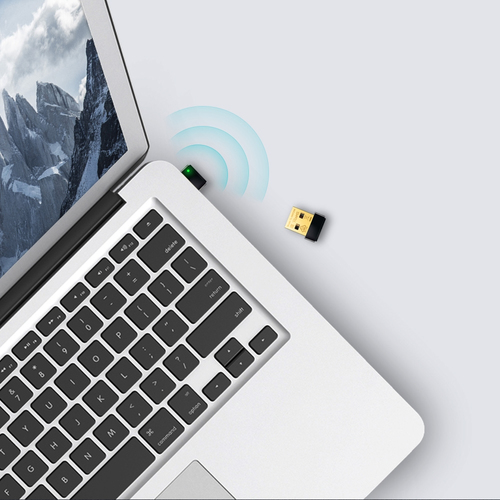

TL-WN725N is designed to be as convenient as possible. With its miniature size and sleek design, users can connect the nano adapter to any USB port and leave it there, no matter when they are traveling or at home.

Easy Setup

A friendly user interface on a CD for simple installation

Advanced Security

WPA/WPA2 encryption standards ensure wireless connection's safety.

Operating System

Supports Windows, Mac OS, Linux

Specifications

Ports & interfaces
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB version	2.0

Network
Maximum data transfer rate	150 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.4835 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	11,54,150 Mbit/s
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK

Design
Component for	PC/Laptop
Product colour	Black
Internal	No
Antenna	Yes
Antenna design	Internal
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	20 dBm
LED indicators	Status
Operating modes	Infrastructure mode

Power
USB powered	Yes

System requirements
Windows operating systems supported	Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Sustainability
Sustainability compliance	Yes

Weight & dimensions
Width	18.6 mm
Depth	15 mm
Height	7.1 mm
Weight	2.1 g

Packaging data
Package width	138 mm
Package depth	128 mm
Package height	30 mm
Package weight	71 g

Packaging content
Resource CD	Yes
Quick installation guide	Yes

Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Logistics data
Harmonized System (HS) code	85176990

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
