Products › Network Devices

Tp Link

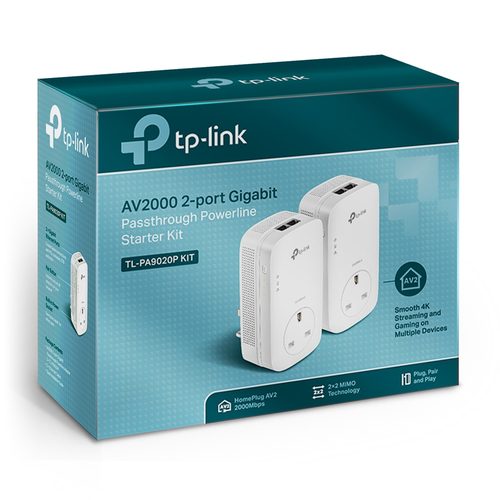

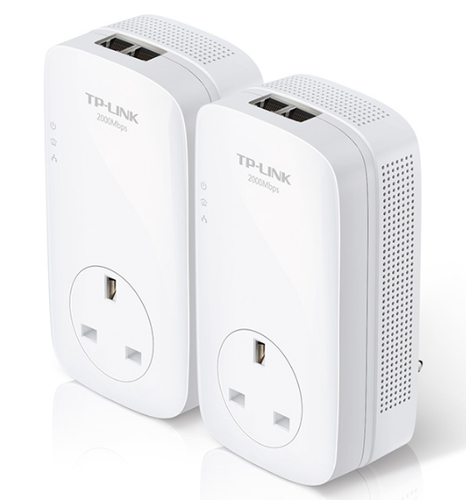

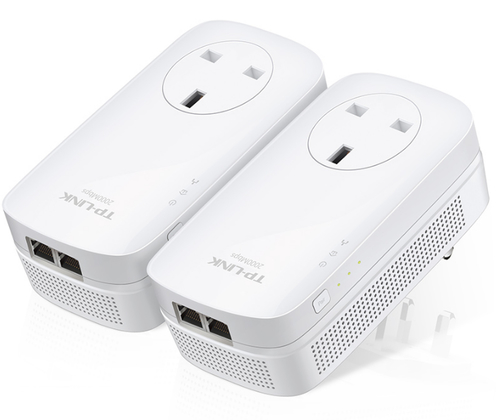

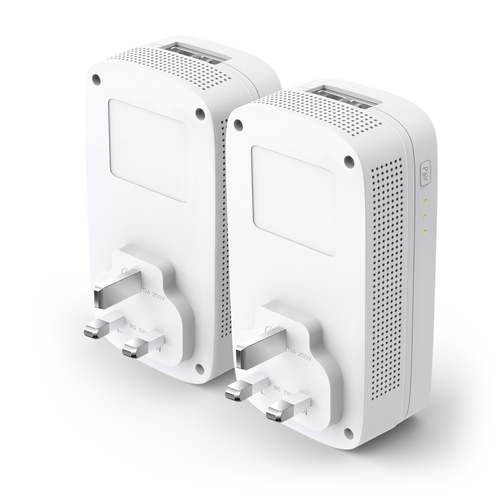

TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit

Part number TL-PA9020P KIT

AV2000 GIGABIT STARTER KIT AC PASSTHROUGH 2PORT TWIN PACK

  • HomePlug AV2 standard compliant, high-speed data transfer rates of up to 2000Mbps1, supports all your online needs
  • 2X2 MIMO with Beamforming establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
  • 2 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%
Manufacturer
Tp Link
Part number
TL-PA9020P KIT
Condition
New
Category
Network Devices › Wireless Networking
1GPA category
Hardware

Overview

Internet For A Brighter Life

AV2000 Gigabit Passthrough Powerline Starter Kit

TL-PA9020P KIT

Take Your Powerline Network to the Next Level

With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again.

An Exclusive Fast Lane for Your Favorite Devices

The TL-PA9020p creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a

crowded network without slowing down.

Fluid Streaming and Gaming with 2X2 MIMO

2X2 MIMO with Beamforming Technology significantly improves speeds,

especially during peak hours.

More Stable Connections

2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability.

Enhanced Long Distance Performance

2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home, particularly for previously hard to reach outlets.

Wiring up with Gigabit Speeds

Connect to Gigabit speeds for your smart TVs, game consoles, computers and

network attached storage devices. Just use an Ethernet cable to attach your devices

to the Powerline adapter to get started!

Simplified Network for a Better Life

Plug, Pair and Play!

1. First, connect your TL-PA9020P to the router

2. Then, plug in another one wherever you need extra coverage

3. Finally, press the “Pair” button on each adapter

Congratulations! You are ready to enjoying seamless wired connections.

No Power Outlet

is Going to Waste

The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.

Specifications

Performance
Maximum data transfer rate1000 Mbit/s
Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports2
Networking standardsIEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Built-in power socketYes
PowerLine standardHomePlug AV2
ModulationOFDM
Security algorithms128-bit AES
Maximum operating distance300 m
Plug and PlayYes
Power
Power consumption (typical)5.8 W
Power consumption (standby)0.5 W
AC input voltage230 V
AC input frequency50 Hz
Current12 A
Design
Antenna typeInternal
LED indicatorsLAN, Power
Product colourWhite
CertificationCE
System requirements
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home
Linux operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedmacOS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width130.7 mm
Depth71.7 mm
Height66.3 mm
Certificates
Compliance certificatesRoHS
Packaging data
Package width230 mm
Package depth190 mm
Package height100 mm
Package weight780 g
Packaging content
Quantity per pack2 pc(s)
Quick installation guideYes
Cables includedLAN (RJ-45)
Logistics data
Harmonized System (HS) code85171800

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
