TP-Link AC750 Wi-Fi Range Extender
Part number RE220
AC750 WI-FI RANGE EXTENDER SOHO
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
- Dual band speeds up to 750Mbps
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
- Manufacturer
- Tp Link
- Part number
- RE220
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Boost Your WiFi to hard-to-reach Areas
Place the RE220 between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones. Dual-band WiFi can reach speeds up to 750 Mbps and extends up to can not only extend to 3,200 sq. ft. (300m2) with your router. Make the most of you ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.
Stable Dual Band Connection for More Devices
The RE220’s wireless AC technology creates faster and stronger WiFi connections across your home and extends dual band WiFi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide WiFi connections for up to 32 devices, allowing you to enjoy a stable and drop-free experience on all your devices.
Simple Two-Step Setup
Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the
extender via Tether app or Web UI if your router doesn’t support WPS.
Step 2: Relocate the extender to a better location for optimal WiFi coverage with the help of the smart signal indicator light.

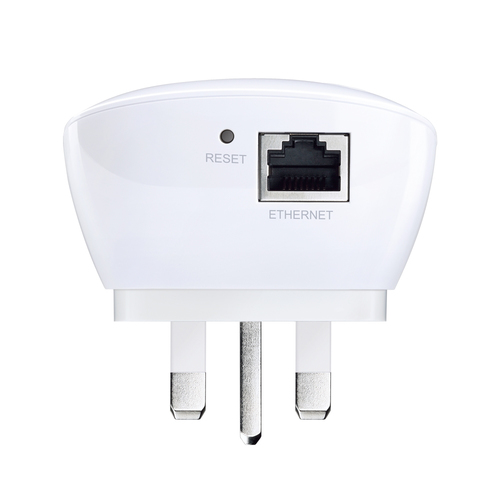

An Access Point and Wireless Adapter
The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices.
High Speed Mode for Maximized Performance
High Speed Mode uses one dedicated WiFi band as backhaul and another dedicated WiFi band as an access point to maximize the bandwidth on extender's WiFi.
Universal Compatibility
The RE220 is compatible with any of your existing WiFi router or access points, making it easy to expand and strengthen your WiFi network.
Smart Management by Tether App
Set up and manage your WiFi through the TP-Link Tether app on your smartphone (Android, iOS).
Specifications
| Type | Network repeater |
|---|---|
| Data transfer rate | 433 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| WPS push button | Yes |
| Firmware upgradeable | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Antennas quantity | 3 |
|---|---|
| Antenna type | Internal |
| Ethernet LAN interface type | Fast Ethernet |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 433 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Product colour | White |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Certification | CE, FCC |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.5 W |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |

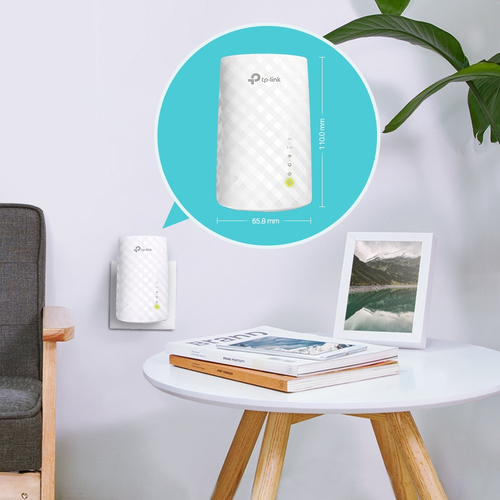

| Width | 110 mm |
|---|---|
| Depth | 66 mm |
| Height | 75 mm |
| Quick start guide | Yes |
|---|
| Package width | 156.5 mm |
|---|---|
| Package depth | 101.5 mm |
| Package height | 89 mm |
| Package weight | 310 g |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
