Products › Input & Output Devices
Tp Link

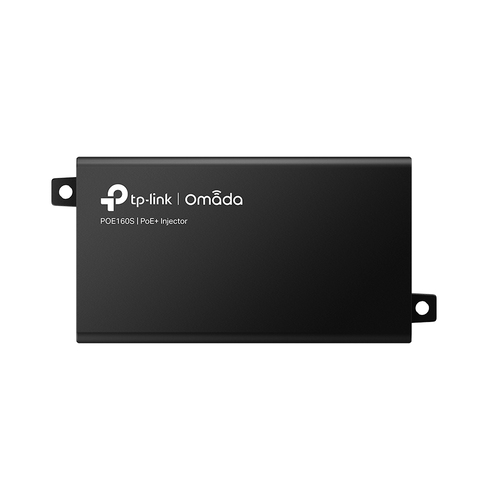

TP-Link Omada PoE+ Injector Adapter
Part number POE160S
OMADA POE+ INJECTOR ADAPTER OMADA POE+ INJECTOR ADAPTER

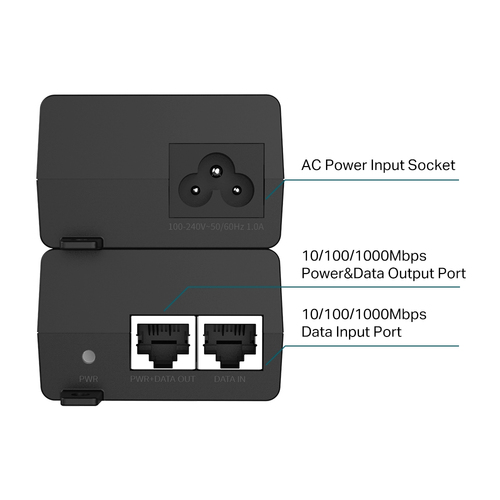

- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

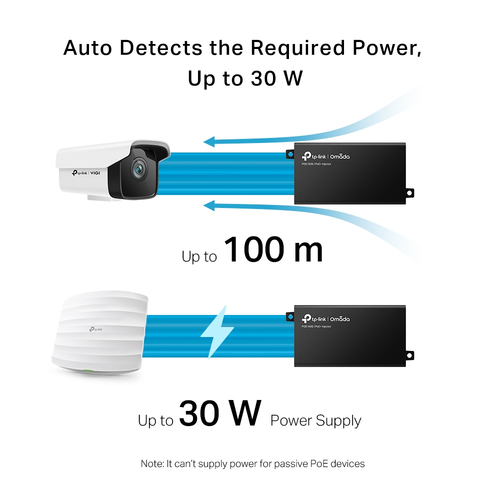

- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Manufacturer
- Tp Link
- Part number
- POE160S
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview

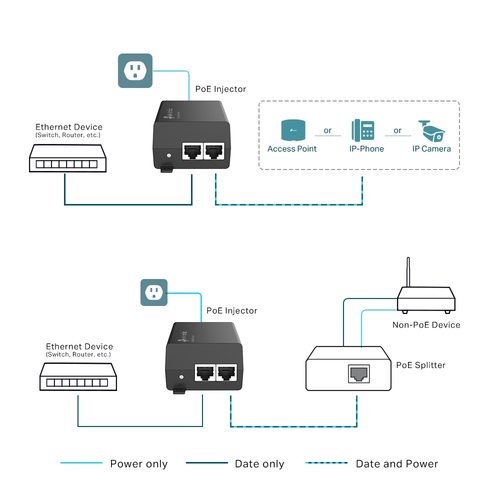

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Product colour | Black |
|---|---|
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Output power | 30 W |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 125 mm |
|---|---|
| Depth | 59.4 mm |
| Height | 36.8 mm |
| Number of products included | 1 pc(s) |
|---|---|
| Wall mounting kit | Yes |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Package width | 170 mm |
|---|---|
| Package depth | 230 mm |
| Package height | 80 mm |
| Package weight | 460 g |
| Package type | Box |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
