Overview

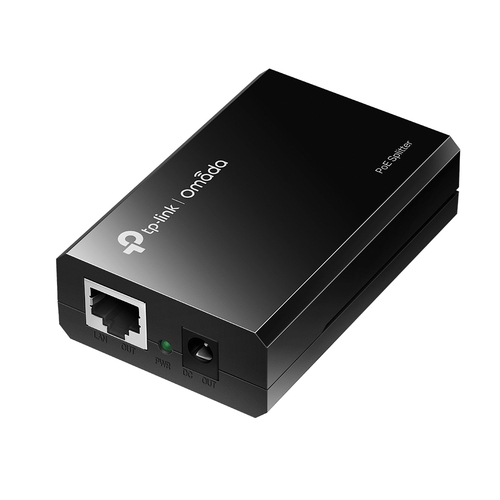

The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
Features
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
|---|
| Power over Ethernet (PoE) | Yes |
|---|
| Product colour | Black |
|---|
| LED indicators | Power |
|---|
| Plug and Play | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| RJ-45 input ports | 1 |
|---|
| RJ-45 output ports | 1 |
|---|
| DC-out jack | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
| Storage relative humidity (H-H) | 5 - 90% |
|---|
Certificates
| Certification | FCC, CE |
|---|
Weight & dimensions
| Width | 80.8 mm |
|---|
| Depth | 54 mm |
|---|
| Height | 24 mm |
|---|
Packaging content
| Quick installation guide | Yes |
|---|
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package width | 65 mm |
|---|
| Package depth | 198 mm |
|---|
| Package height | 65 mm |
|---|
| Package weight | 230 g |
|---|
| Package type | Box |
|---|
Power
| Input voltage | 5, 9, 12 V |
|---|
