Products › Network Devices

Tp Link

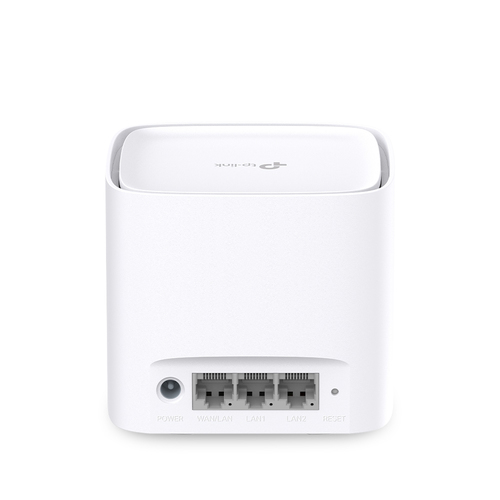

TP-Link AC1200 Whole Home Mesh WiFi System

Part number HC220-G5(1-PACK)

AC1200 WHOLE HOME MESH WI-FI AP

  • Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
  • Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal
  • One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home
  • Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience
  • EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology
  • Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app
  • Remote Management: TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported
Manufacturer
Tp Link
Part number
HC220-G5(1-PACK)
Condition
New
Category
Network Devices › Wireless Networking
1GPA category
Hardware

Overview

Fast. Stable. Everywhere.

AC1200 Whole Home Mesh WiFi System

Whole Home Coverage

Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.

Seamless Roaming with One Wi-Fi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

2-in-1 Router and Access Point Modes

Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

Robust Network Protection

WPA3 Security

Higher password safety and enhanced protection against brute-force attacks

Multi-SSID

Create guest networks for visitors and keep your main network secure

Parental Controls

Block inappropriate content and restrict time spent online

Easy to Set Up and Use

You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.

Support TR-069 Remote Management

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Aginet Solution:

End-to-End Management System for ISPs

Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

Specifications

Design
Product typeMesh system
Product colourWhite
LED indicatorsYes
Antenna typeInternal
Transmit power30 dBmW
Reset buttonYes
Wireless LAN features
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1200 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Networking standardsIEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Security algorithmsSSID, WMM, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3
Point-to-point protocol over Ethernet (PPPoE)Yes
Dynamic IPYes
Static IPYes
IGMP snoopingYes
Apps supportedTP-Link Tether
Mobile network
Mobile network generationNot supported
Features
Built-in processorYes
Processor cores2
Processor frequency0.88 GHz
Band steeringYes
Quality of Service (QoS) supportYes
Port forwardingYes
Firewall securitySPI
BeamFormingYes
Transmitting power (CE)20 dBm
Transmitting power (FCC)30 dBm
NAT functionalityIPTV, IGMPV2/3 and IGMP Snooping
DHCP clientYes
DHCP serverYes
Mobile operating systems supportedAndroid, iOS
Parental controlYes
SSID BroadcastYes
Supported WAN typeDynamic IP/Static IP/PPPoE
MU-MIMO technologyYes
MIMOYes
Operating modesRouter Mode, Access Point Mode
Protocols
Supported network protocols (IPv6)IPv4 IPv6
Ports & interfaces
Ethernet LAN (RJ-45) ports3
Ethernet WANYes
DC-in jackYes
Power
AC input voltage12 V
AC adapter input current1 A
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC)
CertificationCE, FCC
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width100 mm
Depth100 mm
Height89.5 mm
Packaging content
Number of products included1 pc(s)
AC adapter includedYes
Number of units included1 pc(s)
Ethernet cableYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
