Tp Link

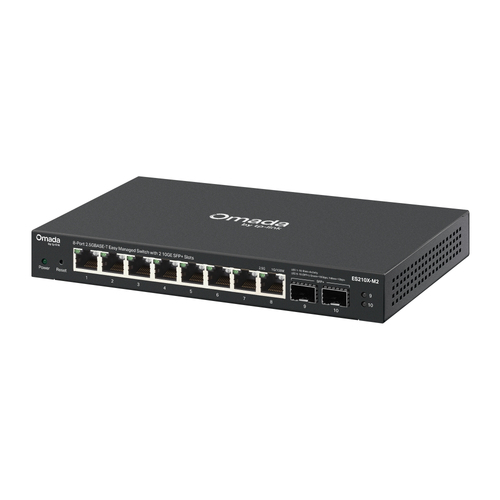

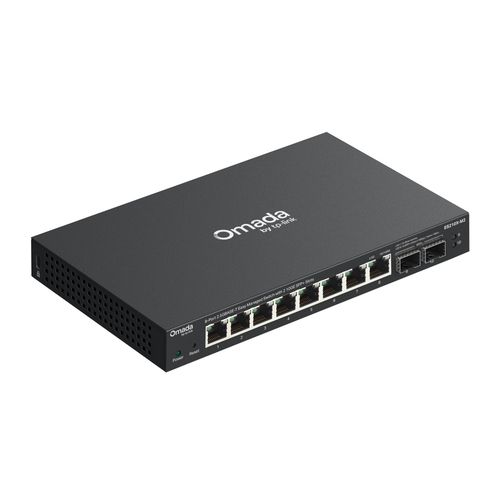

TP-Link ES210X-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
Part number ES210X-M2
OMADA 8P 2.5G SW 2X 10G SFP+ MANAGED SWITCH WITH 2 10GE SFP+ SLO
- 8× 2.5 Gbps RJ45 Ports
- 2× 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

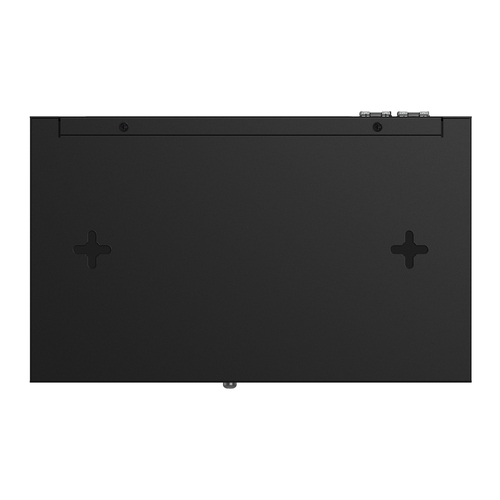

- Durable metal casing and desktop/wall mounting design
- Manufacturer
- Tp Link
- Part number
- ES210X-M2
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Specifications
| Switch type | Managed |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Networking standards | IEEE 802.1p |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 80 Gbit/s |
|---|---|
| Forwarding rate | 59.52 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.64 MB |
| DHCP features | DHCP client |
|---|---|
| IGMP snooping | Yes |
| Rack mounting | Yes |
|---|---|
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| LED indicators | Yes |
| Firmware upgradeable | Yes |
|---|

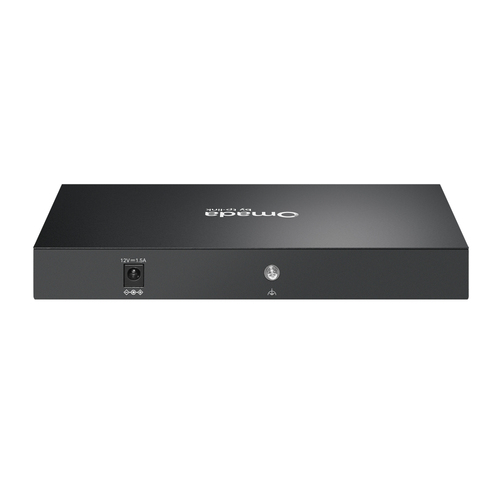

| Power source | DC |
|---|---|
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
|---|
| Operating temperature (T-T) | -5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
| Quick start guide | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
