TP-Link Omada VPN Router with 10G Ports
Part number ER8411
OMADA VPN ROUTER WITH 10G PORTS
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security
- Manufacturer
- Tp Link
- Part number
- ER8411
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports

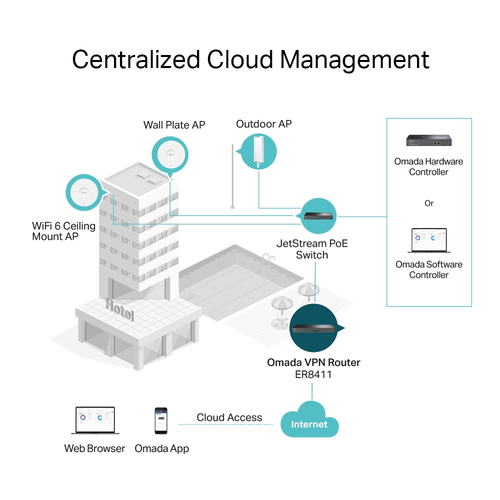

Centralized Cloud Management
Seamless integration into the Omada SDN platform
Quad-Core 2.2 GHz CPU
Enterprise–level hardware design provides maximum performance
Two 10GE SFP+ Ports
High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports
Up to 10 WAN Ports
Multi-WAN Load Balance raises the utilization rate of multi-line broadband
Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup
High-Capacity Performance
Supports up to 2,300,000 concurrent sessions
High-Security VPN
Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN
Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

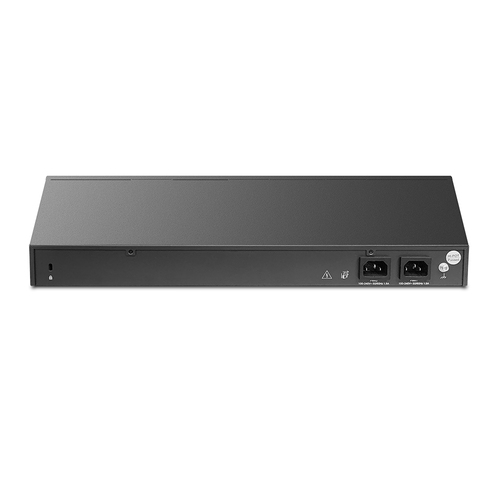

Dual Redundant Power Supplies
Carrier-class reliability for enterprise networking

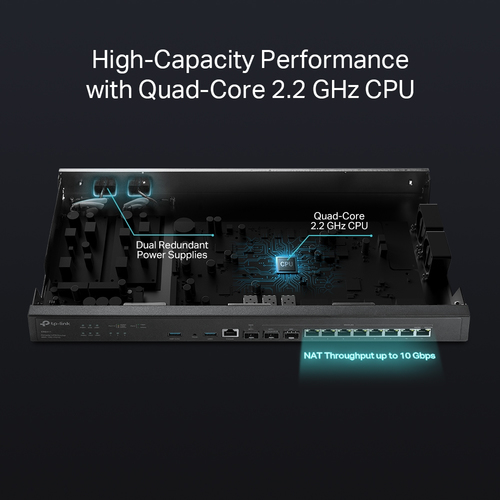

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

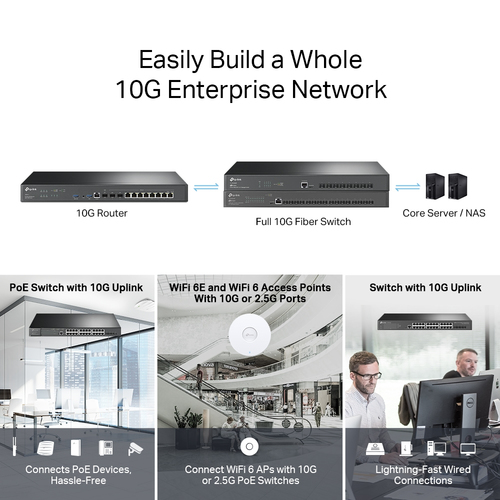

Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

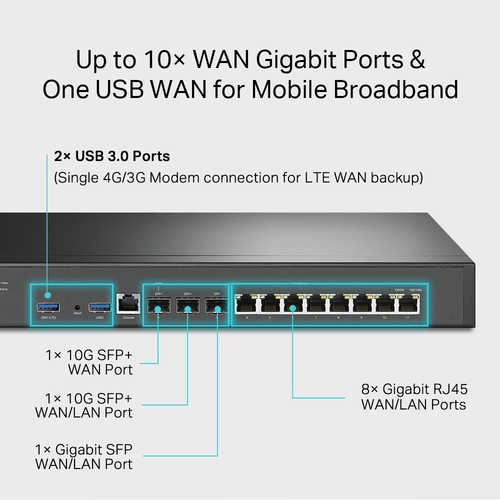

10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

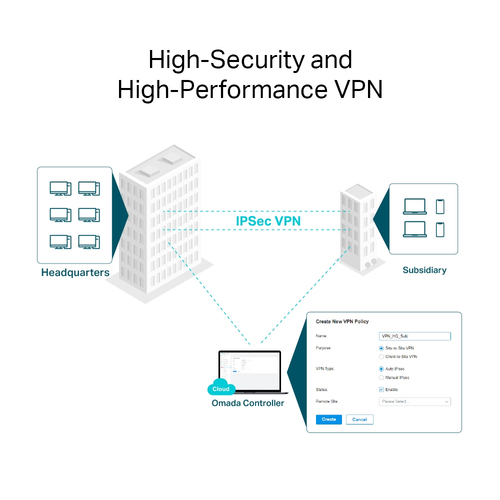

High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
Powerful Firewall
Specifications
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | Yes |
| Networking standards | IEEE 802.1Q |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Port forwarding | Yes |
| Universal Plug and Play (UPnP) | Yes |
|---|---|
| Reset button | Yes |
| Ethernet LAN (RJ-45) ports | 8 |
|---|---|
| Combo SFP ports quantity | 2 |
| USB ports quantity | 2 |
| DC-in jack | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| URL filtering | Yes |
|---|---|
| Access Control List (ACL) | Yes |
| NAT functionality | One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; |
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Built-in processor | Yes |
|---|---|
| Flash memory | 256 MB |
| Internal memory | 4096 MB |
| Internal memory type | DDR4 |
| Certification | CE, FCC, RoHS |
| Product colour | Black |
|---|---|
| LED indicators | Yes |
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Package width | 336 mm |
|---|---|
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 3.68 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
