Tp Link

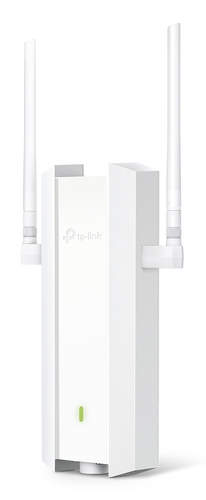

TP-Link Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
Part number EAP625-OUTDOOR HD
AX1800 DUAL-BAND WIFI 6 AP AX1800 DUAL-BAND WIFI 6 AP
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
- Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc
- High-density connectivity up to 1,000+ clients
- Long-range coverage with the high-power amplifier and 2× detachable antennas
- IP67 weatherproof enclosure for various outdoor environments
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming
- PoE+ Powered: Supports both 802.3at PoE (adapter not included)
- Manufacturer
- Tp Link
- Part number
- EAP625-OUTDOOR HD
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Long Distance Starts with External Antennas
Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
- Less Wiring with Omada Mesh
- Powered with PoE+ Switch
- Powered with Passive PoE
Specifications
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 1020 user(s) |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
|---|---|
| IP address filtering | Yes |
| Power over Ethernet (PoE) | Yes |
|---|
| Placement | Pole, Wall |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP67 |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | External |
|---|---|
| Antennas quantity | 2 |
| Width | 280.4 mm |
|---|---|
| Depth | 182.2 mm |
| Height | 56.9 mm |
| Quantity per pack | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
