TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point

Part number EAP615-WALL

AX1800 WALL PLATE WI-FI 6 ACCESS POINT

Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room

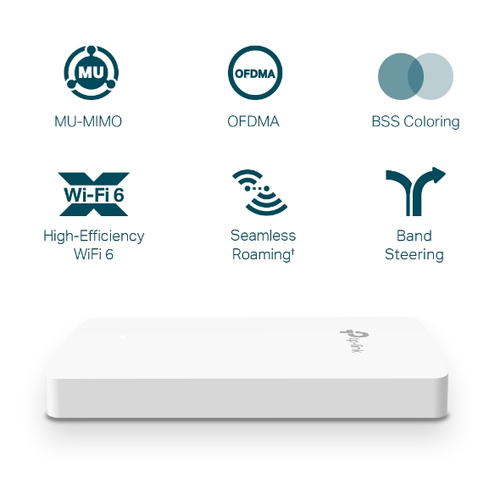

Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag

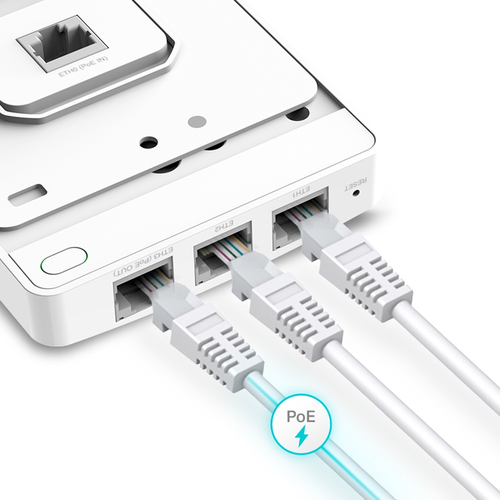

Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Overview

The Smarter Cloud Solution for Business Networking.

AX1800 Wall Plate WiFi 6 Access Point

Futureproof Your Network with WiFi 6 Connectivity

Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

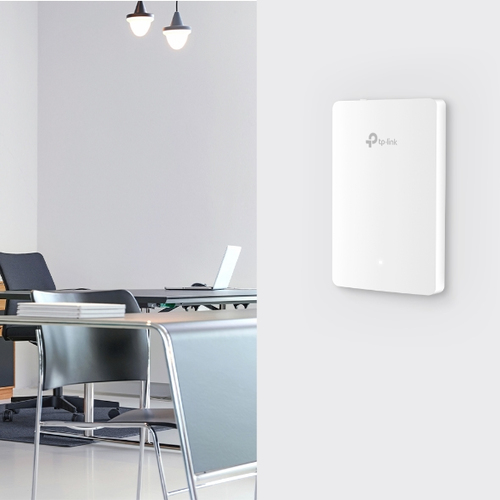

Corner-to-Corner Indoor WiFi Coverage

Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.

Features
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Yes
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Quality of Service (QoS) support	Yes
BeamForming	Yes
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	21 dBm

Security
Security algorithms	WPA, WPA2, WPA3
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes

Management features
Syslog	Yes
Firmware upgradeable	Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports	4

Power
Power over Ethernet (PoE)	Yes

Certificates
Certification	CE, FCC, RoHS

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data
Harmonized System (HS) code	85176990
