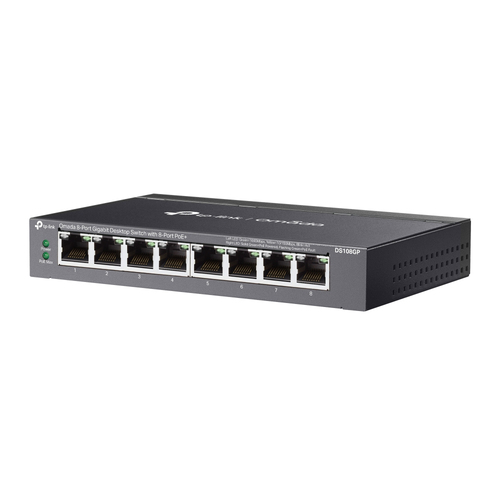

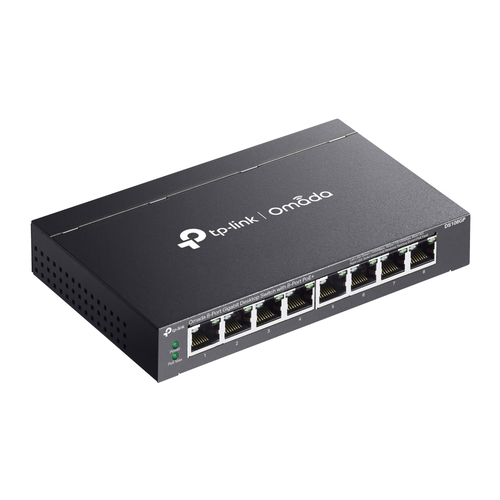

TP-Link Omada DS108GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Part number DS108GP

OMADA 8-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE+

8× 10/100/1000 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE port
Supports PoE power up to 65 W for all PoE ports
Up to 250m (820ft) data and power transmitting range under Extend Mode
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

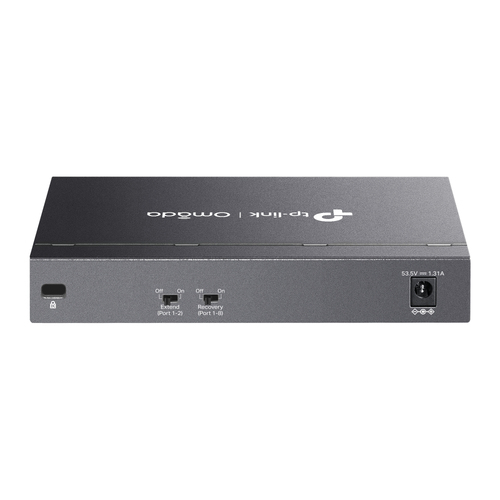

Power connector	DC-in jack

Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes

Security
IGMP snooping	Yes

Performance
Fanless	Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	258.46 BTU/h

Packaging content
Cables included	Power
User guide	Yes

Packaging data
Rubber feet	Yes

Certificates
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
