TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Part number CPE710
5GHZ 867MBPS 23DBI OUTDOOR CPE
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

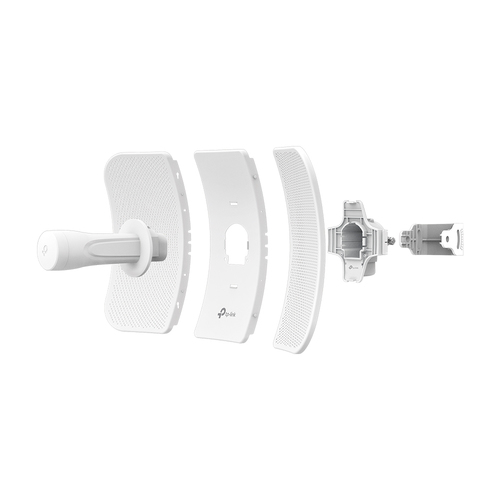

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
- Manufacturer
- Tp Link
- Part number
- CPE710
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Specifications
| Frequency band | 5.15 - 5.85 GHz |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Gain | 23 dBi |
| Horizontal beam width | 9° |
| Vertical beam width | 7° |
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Antenna gain level (max) | 23 dBi |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | Directional antenna |
|---|---|
| Antenna connector type | PoE/LAN |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP65 |
| LED indicators | Power |
| Power source type | PoE |
|---|---|
| Input voltage | 24 V |
| Certification | CE, FCC, RoHS, IC |
|---|
| Operating temperature (T-T) | -40 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 366 mm |
|---|---|
| Depth | 280 mm |
| Height | 207 mm |
| Package type | Box |
|---|
| Cables included | AC |
|---|
| Export Control Classification Number (ECCN) | EAR99 |
|---|---|
| Harmonized System (HS) code | 85176990 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
