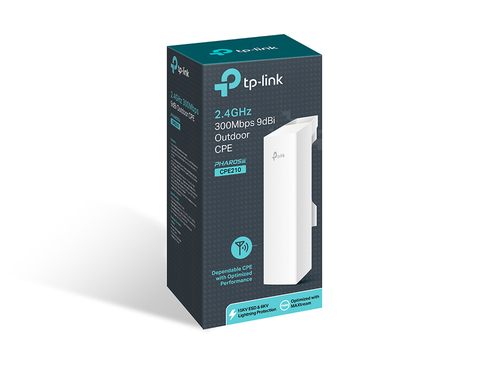

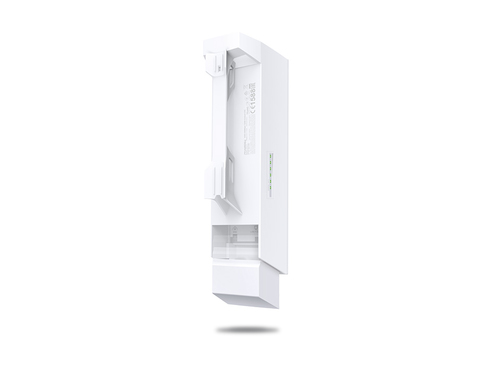

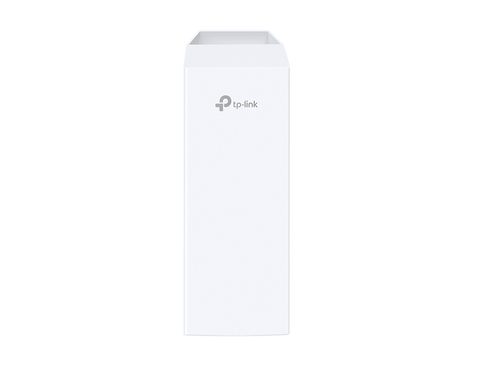

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 300 Mbit/s White Power over Ethernet (PoE)
Part number CPE210
2.4GHZ 300MBPS 9DBI OUTDOOR CPE
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
- Manufacturer
- Tp Link
- Part number
- CPE210
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Specifications
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Frequency band | 2.4 - 2.483 GHz |
| Bandwidth | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Maximum outdoor range | 5000 m |
| Receiver sensitivity | 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
|---|---|
| MAC address filtering | Yes |
| Management protocols | TDMA |
|---|
| Web-based management | Yes |
|---|---|
| Management platform | Pharos Control |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 10.5 W |
| Placement | Wall |
|---|---|
| Product colour | White |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
|---|---|
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 9 dBi |
| Built-in processor | Yes |
|---|---|
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5 |
|---|
| Width | 224 mm |
|---|---|
| Depth | 79 mm |
| Height | 60 mm |
| Cables included | AC |
|---|---|
| Mounting kit | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
