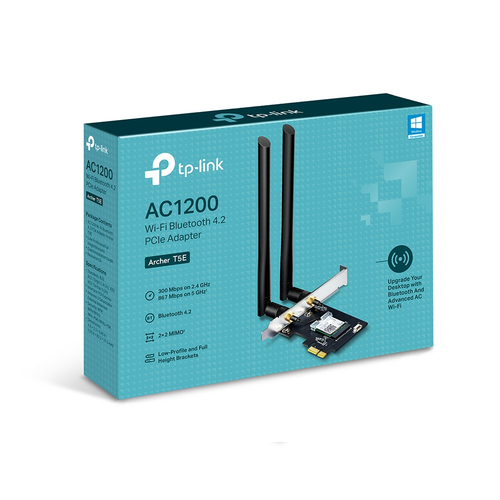

TP-Link Archer T5E Internal WLAN / Bluetooth 867 Mbit/s
Part number ARCHER T5E
AC1200 WFBLUETOOTH PCIE ADAPTER AC1200 WI-FI BLUETOOTH PCIE ADAPTER
- Super-Fast Speed: Make full use of your network with AC1200 WiFi speeds (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band).1
- Bluetooth 4.2: Achieve 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0. 3
- Broad Wireless Range: Connect to your WiFi from further away with two external high-gain antennas ensuring greater range and enhanced stability
- Easy Installation: Plug the adapter into an available PCI-E slot and install the drivers with the included CD
- Windows Compatibility: Supports Windows 10, 8.1, 8, and 7 (32/64-bit).2
- If you do not have a CD Rom or having difficulty with the CD please visit our homepage and search Archer T5E Driver is available for download on the support page for Archer T5E
- Manufacturer
- Tp Link
- Part number
- ARCHER T5E
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Upgrade Your Desktop with Super-Fast WiFi and Bluetooth
AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter
Archer T5E
Dual Band WiFi for Faster Connections
Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.
Arm Your PC with Bluetooth 4.2
Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.3
Powerful Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend your existing WiFi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.
Advanced Security
WPA/WPA2 encryption standards ensure your data is safe from cyberattacks
Operating System
Supports Windows 10/8.1/8/7 (32/64 bit)
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases
Specifications
| Connectivity technology | Wireless |
|---|---|
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| USB version | 2.0 |
| Maximum data transfer rate | 867 Mbit/s |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Component for | PC |
|---|---|
| Product colour | Black |
| Internal | Yes |
| Antenna | Yes |
| Antenna design | External |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 21.5 dBm |
| Operating modes | Infrastructure mode |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability compliance | Yes |
|---|
| Width | 120.8 mm |
|---|---|
| Depth | 83.2 mm |
| Height | 21.5 mm |
| Package width | 200 mm |
|---|---|
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 230 g |
| Mounting brackets included | Yes |
|---|---|
| Resource CD | Yes |
| Bluetooth header cable | Yes |
| Quick installation guide | Yes |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
