Tp Link

TP-Link Archer T2E Internal WLAN 433 Mbit/s

Part number ARCHER T2E

AC600 WL DUAL BAND PCIE ADAPTER

AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)

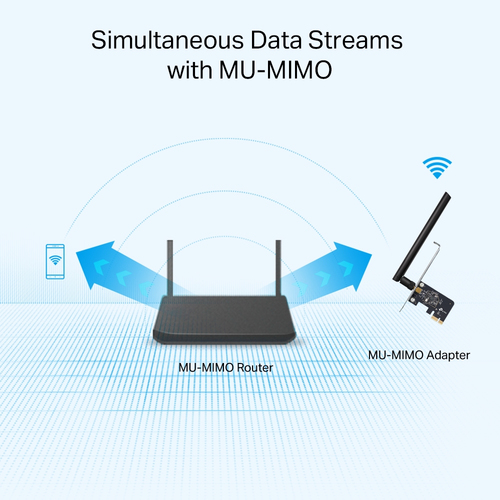

MU-MIMO Supported – Boost network throughput and efficiency when working with a compatible MU-MIMO router
Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with a powerful signal-boosting high-gain antenna
WPA3 Supported – Improve cybersecurity with more secure and individualized protection
Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design

Manufacturer: Tp Link
Part number: ARCHER T2E
Condition: New
Category: Network Devices › Wireless Networking
1GPA category: Hardware

Overview

Upgrade Your Desktop with Advanced AC WiFi

AC600 Wireless Dual Band PCI Express Adapter

WiFi for All Your Online Needs

Archer T2E provides your PC with WiFi capability and receives WiFi signals on two separate bands. It can even work as a WiFi hotspot, sharing internet with other WiFi devices. Choose 2.4 GHz for browsing, email and social media, or switch to 5 GHz for gaming and streaming.

Broader Coverage with High-Gain Antenna

Powerful signal-boosting high-gain antenna significantly extends your existing WiFi reception, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Improved Security with WPA3

The latest WiFi security protocols bring new capabilities to improve cybersecurity, safeguarding your home WiFi. It provides more secure and individualized encryption for personal password safety and enhanced protection against brute-force attacks.

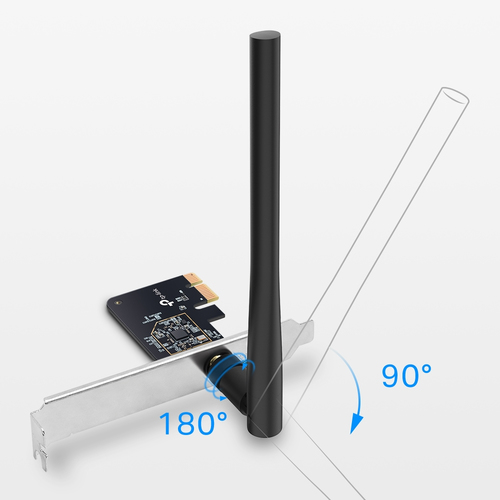

Adjustable,

Multi-Directional Antenna

Adjust the antenna to the perfect position to suit any

environment. Replace the detachable antenna with a

diverse range of indoor or directional antennae to

further enhance your wireless coverage.

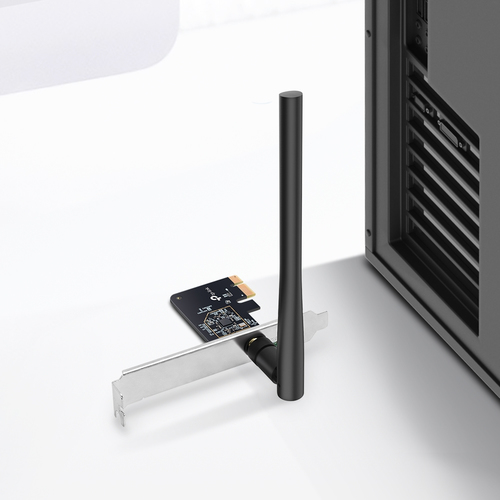

Flexible Design, Easy Setup

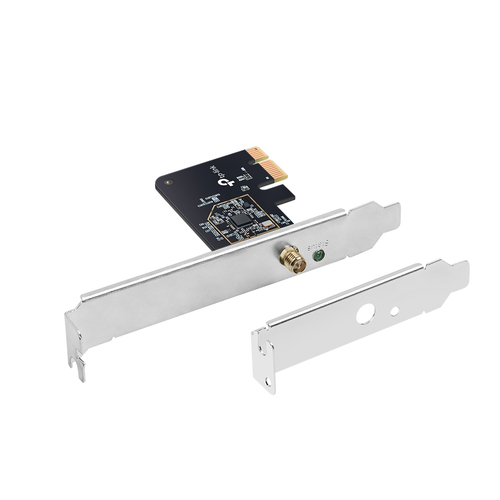

Standard and low profile brackets let you find the optimal bracket for your tower. With 3 simple steps, enjoy fast WiFi after a quick, hassle-free installation.

Specifications

Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN

Network
Maximum data transfer rate	433 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	11,54,200,433 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Design
Component for	PC
Product colour	Black, Silver
Internal	Yes
Antenna	Yes
Antenna design	External
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	18 dBm
Operating modes	Infrastructure mode

System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Sustainability
Sustainability compliance	Yes

Weight & dimensions
Width	120.8 mm
Depth	78.5 mm
Height	21.5 mm

Packaging data
Package width	201.5 mm
Package depth	152.5 mm
Package height	41.5 mm
Package weight	160 g

Packaging content
Mounting brackets included	Yes
Resource CD	Yes
Quick installation guide	Yes

Technical details
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE

Logistics data
Harmonized System (HS) code	85176990

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
