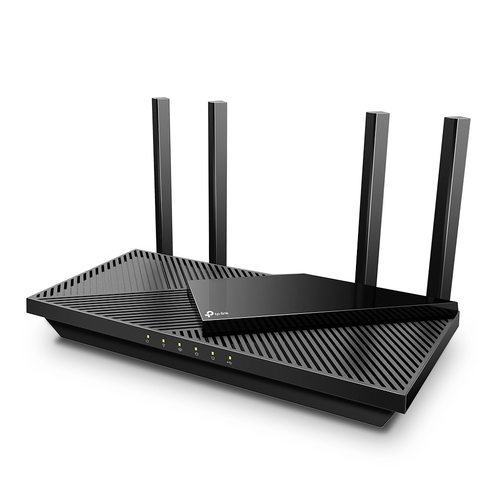

TP-Link Archer AX3000 Dual Band Gigabit Wi-Fi 6 Router
Part number ARCHER AX55
AX3000 GIGABIT WI-FI 6 ROUTER
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices
- Ultra-Low Latency—Enables more responsive gaming and video chatting
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa
- Supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals
- Manufacturer
- Tp Link
- Part number
- ARCHER AX55
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Less Loading Wheels
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your Wi-Fi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Powerful CPU and High Memory
Connect More without Dropping Speed
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat-ups, no throttles. A larger heat sink and refined case design cool the Wi-Fi 6 system and enable your network to stay at top speed in more versatile environments.
Wi-Fi Coverage Throughout Your Home
4 high-performance external antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
TP-Link OneMes™
Flexible Create Whole Home Wi-Fi with Archer AX55
Want to build a whole-home Wi-Fi? Archer AX55 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropriate content keeping your family safe online.
Quality of Service
Assign your favourite devices to have the fastest connections for top performance.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Specifications
| Ethernet WAN | Yes |
|---|---|
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2976 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Built-in FTP server | Yes |
| VPN server | OpenVPN, PPTP |
| Media server | Yes |

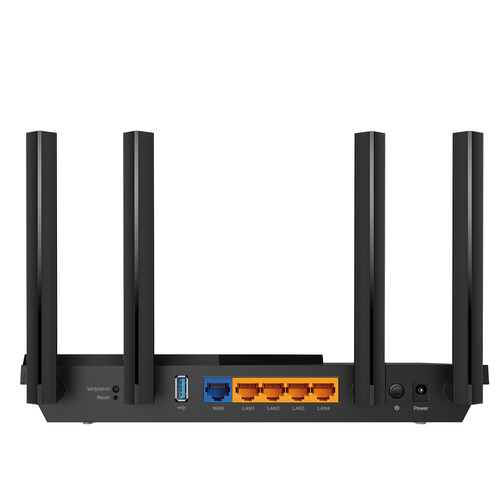

| Ethernet LAN (RJ-45) ports | 4 |
|---|---|
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Quality of Service (QoS) support | Yes |
|---|---|
| Reset button | Yes |
| WPS push button | Yes |
| Intelligent Mesh technology | Yes |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
|---|---|
| Firewall | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| DDoS protection | Yes |
| Filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Product colour | Black |
|---|---|
| On/off switch | Yes |
| Product type | Tabletop router |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
|---|
| Cables included | LAN (RJ-45) |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Sustainability compliance | Yes |
|---|
| Antenna design | External |
|---|---|
| Antennas quantity | 4 |
| Detachable antenna(s) | No |
| Built-in processor | Yes |
|---|---|
| Processor cores | 2 |
| Internal memory | 512 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
| Power source type | AC |
|---|---|
| Output voltage | 12 V |
| Output current | 2 A |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Browser supported | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
|---|
| Width | 261.1 mm |
|---|---|
| Depth | 134.5 mm |
| Height | 41 mm |
| Package width | 330 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 73 mm |
| Package weight | 940 g |
| Number of products included | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
