StarTech.com 2U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 22lbs
Part number WALLMOUNTH2
WALL MOUNT PATCH PANEL BRACKET 2U HINGED PANEL MOUNTING BRACKET
- EASY EQUIPMENT ACCESS: The wall mount patch panel bracket features a hinged design for easy access to configuration buttons, ports and cables, and to the rear of the equipment for easy adjustment
- STURDY CONSTRUCTION: Made of sturdy cold rolled steel, this patch panel network rack is designed to provide a dependable solution for mounting 19in networking/data/IT equipment to a wall
- STANDARDIZED HOLE SIZING: The 2U 19in hinged wall mount bracket is positioned 16in apart, exactly matching standard drywall construction framework to ensure simple and secure wall-stud anchoring
- OPTIMIZED WORKSPACE: This durable 2U hinged wall mount server equipment rack has a maximum mounting depth of 5.8in [14.8cm] and a maximum weight capacity of 22.1 lb [10kg]
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount bracket is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- WALLMOUNTH2
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)

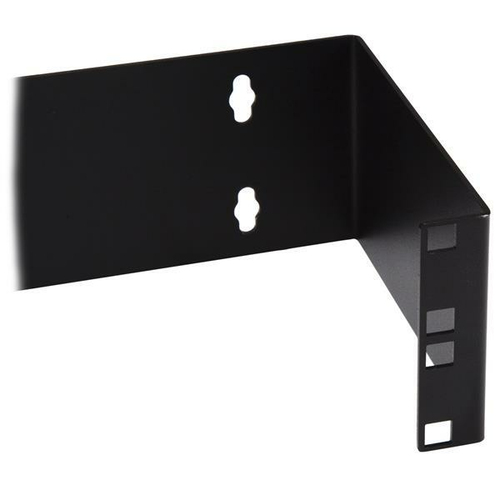

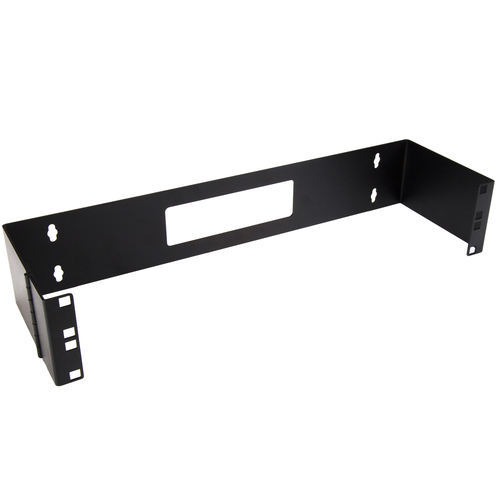

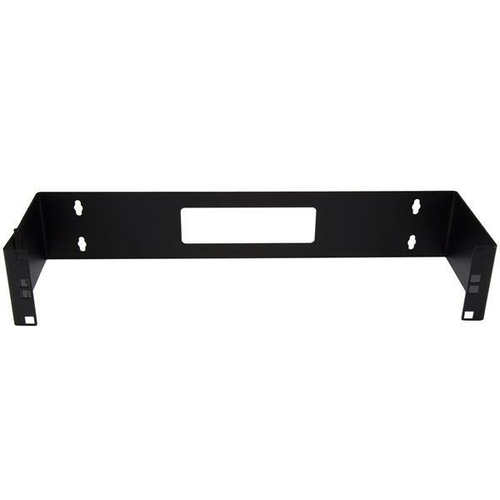

The WALLMOUNTH2 2U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

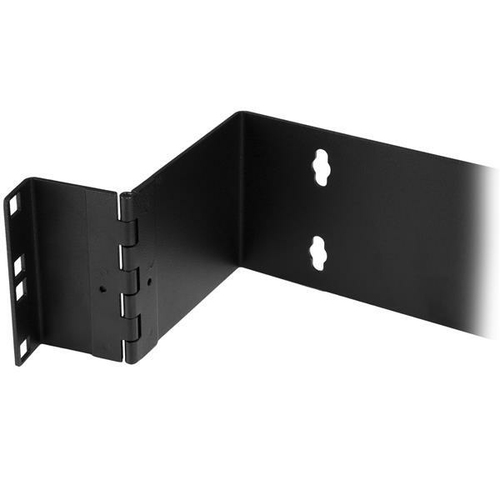

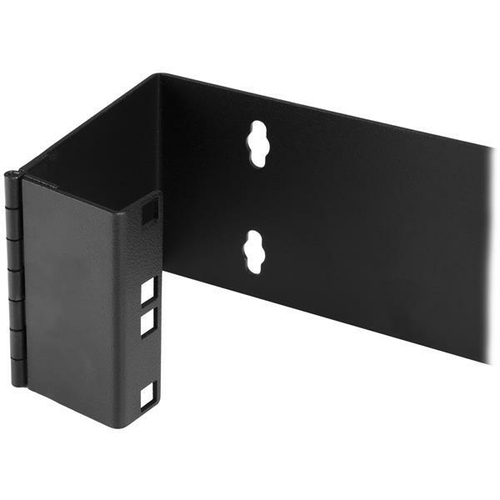

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
Specifications
| Rack capacity | 2U |
|---|---|
| Type | Wall mounted rack |
| Maximum weight capacity | 10 kg |
| Product colour | Black |
| Material | Aluminium, Steel |
| Frame type | Open |
| Product design | 2-post |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | REACH, CE |
| Width | 501 mm |
|---|---|
| Depth | 151 mm |
| Height | 88 mm |
| Weight | 1.2 kg |
| Mounting depth (max) | 14.8 cm |

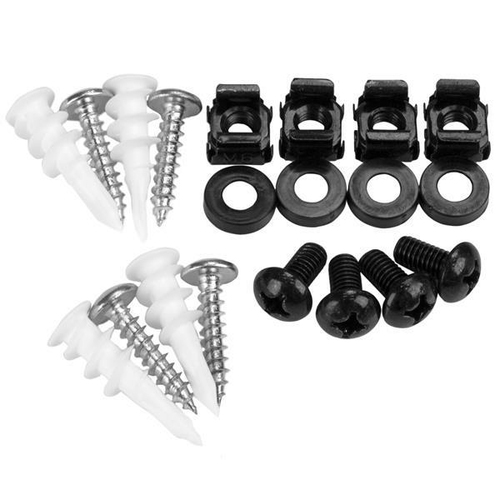

| Nuts included | Yes |
|---|---|
| Number of nuts | 4 |
| Screws included | Yes |
| Number of screws | 8 |
| Number of washers included | 4 |
| Manual | Yes |
| Package width | 528 mm |
| Package depth | 193 mm |
| Package height | 133 mm |
| Package weight | 1 kg |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|---|
| Master (outer) case width | 531 mm |
| Master (outer) case length | 191 mm |
| Master (outer) case height | 137 mm |
| Products per master (outer) case | 1 pc(s) |
| Compliance industry standards | EIA/ECA-310-E |
|---|
