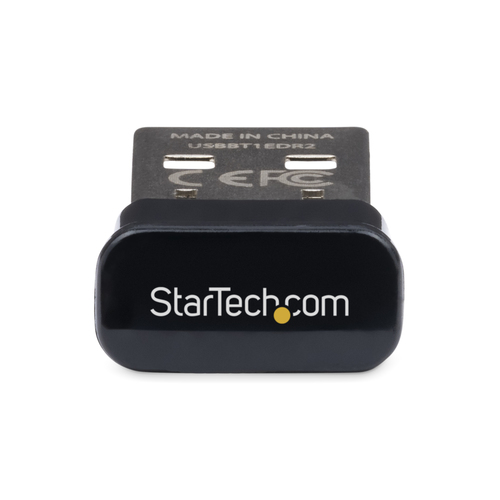

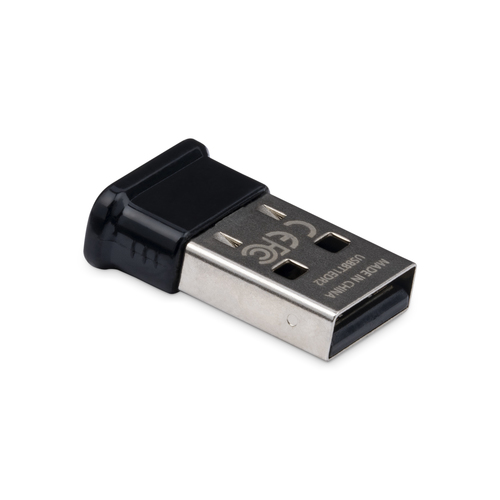

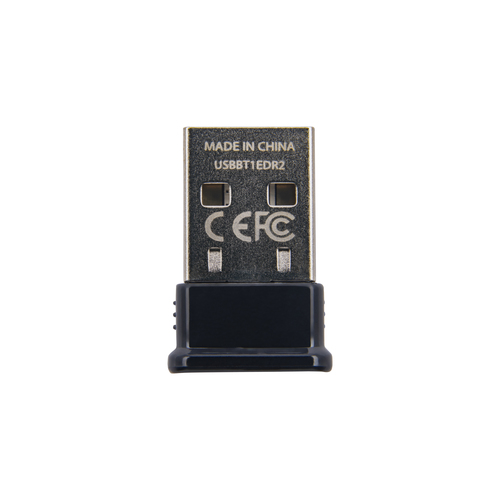

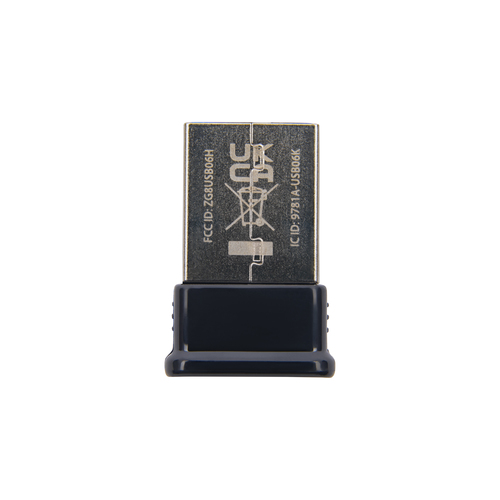

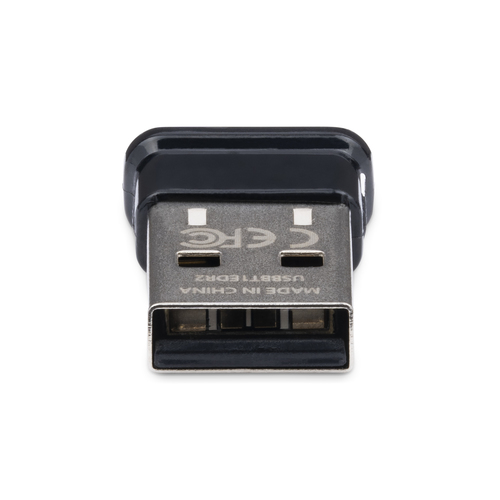

StarTech.com Mini USB Bluetooth 2.1 Adapter - Class 1 EDR Wireless Network Adapter
Part number USBBT1EDR2
USB BLUETOOTH ADAPTER V2.1 BLUETOOTH RECEIVER DONGLE CLASS 1
- Bluetooth v2.1 + EDR compliant
- Class 1 device with 100m (328ft) effective range
- Ultra-compact form factor
- Support for Enhanced Data Rate with data transfer rates up to 3 Mbps
- Power/Standby LED indicator
- Manufacturer
- StarTech.com
- Part number
- USBBT1EDR2
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
Add Bluetooth 2.0 with EDR capabilities to a computer, through USB
The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Connectivity technology | Wireless |
|---|---|
| Host interface | USB |
| Interface | Bluetooth |
| Maximum data transfer rate | 3 Mbit/s |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Modulation | DQPSK |
| Maximum operating distance | 100 m |
| Bluetooth version | 2.1+EDR |
| Product colour | Black |
|---|---|
| Internal | No |
| Chipset | CSR BC0401PC08 |
| LED indicators | Power |
| Certification | RoHS, CE, FCC |
| Power consumption (typical) | 1 W |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
| Operating temperature (T-T) | 10 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 0 - 75% |
| Width | 9.7 mm |
|---|---|
| Depth | 20 mm |
| Height | 6 mm |
| Weight | 2 g |
| Package width | 144 mm |
|---|---|
| Package depth | 168 mm |
| Package height | 32 mm |
| Package weight | 75 g |
| Harmonized System (HS) code | 85176990 |
|---|---|
| Master (outer) case width | 308 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case height | 378 mm |
| Products per master (outer) case | 60 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
