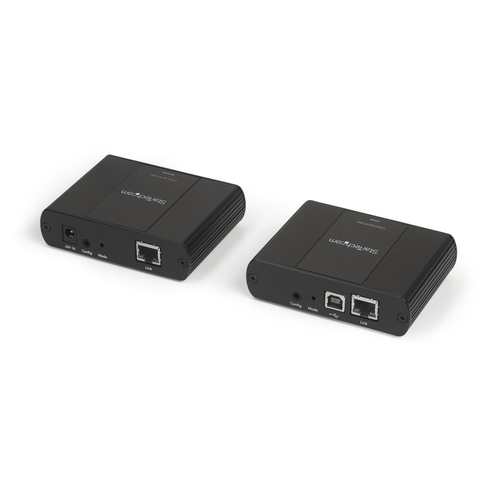

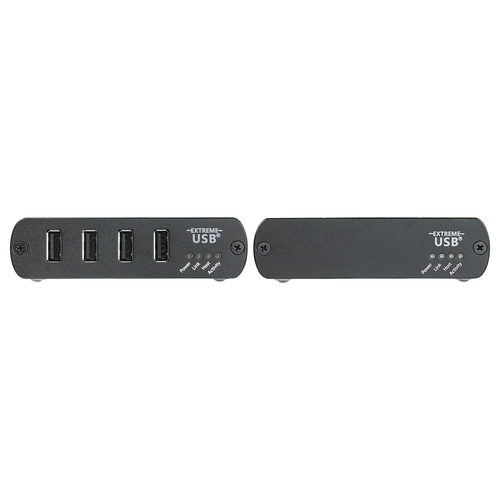

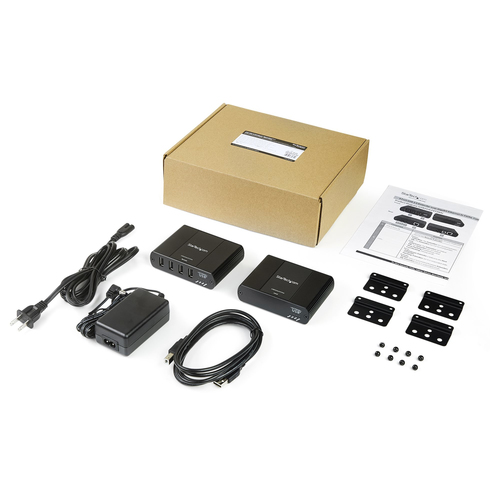

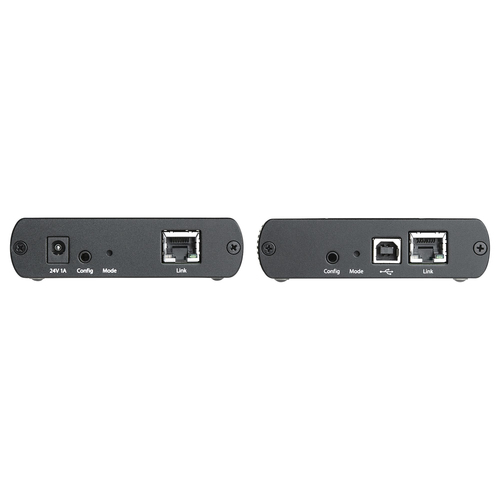

StarTech.com 4 Port USB 2.0 Extender over Ethernet/IP Network Hub - Up to 330ft (100m) - USB over Gigabit LAN or Direct Cat5e/Cat6 Cable (RJ45) Extender Adapter - USB Extender Kit
Part number USB2G4LEXT2NA
4 PORT USB 2.0 EXTENDER HUB USB-A OVER CAT5/6 ETHERNET RJ45
- USB 2.0 EXTENDER: Data transfer up to 480Mbps; Connect 4 USB devices using existing Gigabit Ethernet LAN switch(s)/IP network hardware as far as your network allows or connect transmitter/receiver directly over CAT5e/CAT6 RJ45 cable up to 330ft/100m_x000D_
- CONNECT REMOTE USB DEVICES: Works as a 4 Port USB Hub at a remote location (receiver) to access devices like a printer, camera, plotter, keyboard/mouse, display, & CCTV system at a convenient location_x000D_
- DURABLE USB EXTENDER: Extruded aluminum construction for high wear & tear industrial environments with mounting brackets incl; LEDs to monitor power, activity status, link/host connectivity_x000D_
- ACTIVE USB EXTENDER KIT: The included power adapter for remote extension receiver enables the four USB ports to provide up to 5V/600mA per port; Local extender (transmitter) is USB Host bus powered_x000D_
- PLUG-AND-PLAY: The extender requires no drivers to install & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backward compatible with USB 1.1 devices_x000D_
- _x000D_
- Manufacturer
- StarTech.com
- Part number
- USB2G4LEXT2NA
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
USB extender over Cat5e, Cat6, Cat7 | Rugged Enclosure | 4 USB Ports| 2-Year Warranty
The 4-Port USB 2.0 over Ethernet Extender lets you extend USB devices over a Gigabit Ethernet Local Area Network (LAN) using dedicated Cat5e, Cat6, or Cat7 cabling up to 330ft (100m).
Reuse Existing Infrastructure
The USB over IP extender allows you to utilize your existing IP LAN so you can avoid running new infrastructure cabling. When channeling through multiple switches at 100m intervals, the maximum extension distance resets at each switch location, making it easy to span multiple floors in a home or office setting. You can even connect the local and remote units via a single Cat5e, Cat6, or Cat7.
Gigabit Connectivity
Unlike 10/100Mbps USB extenders, this versatile USB extender leverages the full data transfer potential of your USB 2.0 peripherals up to 480Mbps, to deliver low latency that enables support for extending isochronous devices such as webcams or microphones. Compatible with USB 2.0, and 1.1 devices with support for up to 600mA of power per port, it also functions as a USB over Ethernet hub
Rugged Design
A flexible solution for business or industrial applications, this rugged metal enclosure includes wall-mounting brackets and simple plug-and-play installation with no software or drivers required.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB 2.0 EXTENDER: Data transfer up to 480Mbps; Connect 4 USB devices using existing Gigabit Ethernet LAN switch(s)/IP network hardware as far as your network allows or connect transmitter/receiver directly over CAT5e/CAT6 RJ45 cable up to 330ft/100m
- CONNECT REMOTE USB DEVICES: Works as a 4 Port USB Hub at a remote location (receiver) to access devices like a printer, camera, plotter, keyboard/mouse, display, & CCTV system at a convenient location
- DURABLE USB EXTENDER: Extruded aluminum construction for high wear & tear industrial environments with mounting brackets incl; LEDs to monitor power, activity status, link/host connectivity
Specifications
| Type | Console transmitter & receiver |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Compliance certificates | RoHS |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| USB 2.0 Type-A ports quantity | 4 |
|---|---|
| USB 2.0 Type-B ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Width | 76 mm |
|---|---|
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 192 g |
| Package width | 195 mm |
| Package depth | 245 mm |
| Package height | 78 mm |
| Package weight | 932 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Cables included | AC, USB |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power consumption (typical) | 24 W |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power plug type | Type M |
| Master (outer) case width | 406 mm |
|---|---|
| Master (outer) case length | 558 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 14 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
