Overview

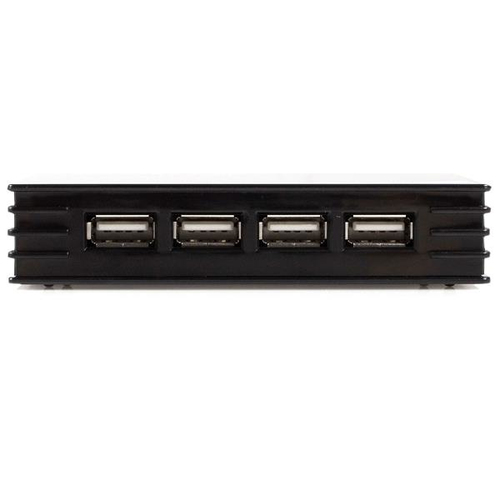

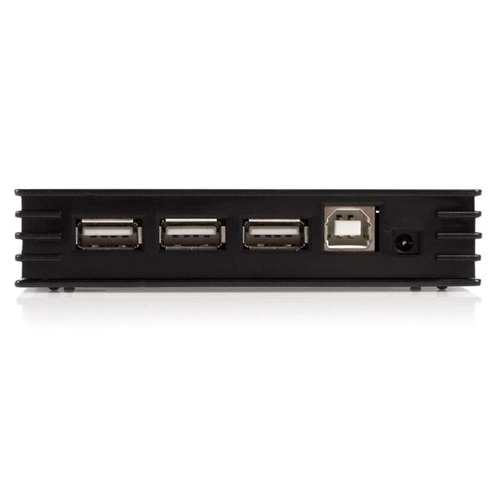

Turn a single USB 2.0 port into 7 external USB 2.0 ports
This TAA compliant 7 Port USB 2.0 Hub connects to one USB 2.0 port on a Mac or PC computer, adding seven USB 2.0 ports - allowing you to maximize the number of high speed USB peripherals connected to your computer. The hub supports cascaded installation with other USB 2.0 hubs, supporting up to 127 USB 2.0 device connections - a scalable solution for connecting multiple USB devices to a single host computer.

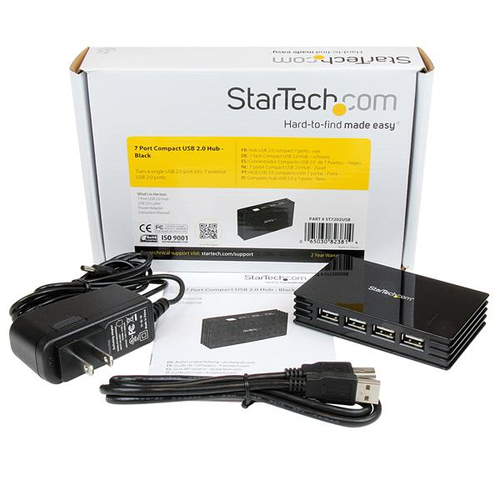

The 7 port hub includes a power adapter, but can be powered through USB bus connection to the host computer - allowing you to install the hub as needed without worrying about the availability of a power outlet.
Specifications
Ports & interfaces
| Host interface | USB 2.0 |
|---|
| Hub interfaces | USB 2.0 |
|---|
| USB 2.0 ports quantity | 7 |
|---|
| Ports quantity | 7 |
|---|
Features
| Data transfer rate | 480 Mbit/s |
|---|
| Product colour | Black |
|---|
| Housing material | Plastic |
|---|
| Hot-swap | Yes |
|---|
| Plug and Play | Yes |
|---|
| Certification | RoHS, CE, FCC |
|---|
Power
| Input voltage | 110 - 240 V |
|---|
| Input current | 1 A |
|---|
| Output voltage | 5 V |
|---|
| Output current | 2 A |
|---|
| Power plug type | Type H |
|---|
Weight & dimensions
| Width | 60 mm |
|---|
| Depth | 100 mm |
|---|
| Height | 20 mm |
|---|
| Weight | 290 g |
|---|
Packaging data
| Package width | 211 mm |
|---|
| Package depth | 147 mm |
|---|
| Package height | 40 mm |
|---|
| Package weight | 400 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Cables included | USB |
|---|
| Manual | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|
Logistics data
| Master (outer) case width | 694 mm |
|---|
| Master (outer) case length | 360 mm |
|---|
| Master (outer) case height | 319 mm |
|---|
| Products per master (outer) case | 50 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
