StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
Part number ST7200USBM
7 PORT USB 2.0 HUB METAL TAA INDUSTRIAL MOUNTABLE HEAVY DUTY
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
- Offers flexible, wide-range power inputs with a 7-24V DC terminal block
- Adds seven USB 2.0 ports from a single USB connection
- Manufacturer
- StarTech.com
- Part number
- ST7200USBM
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

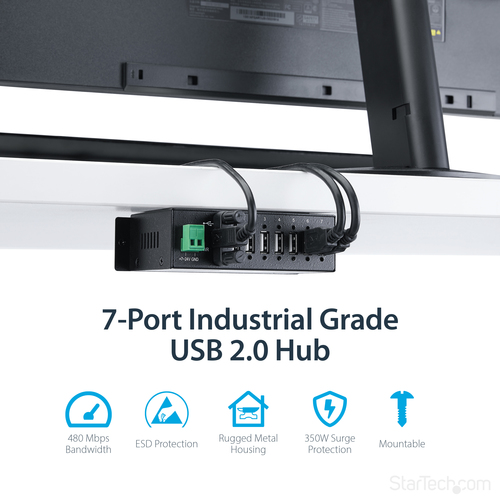

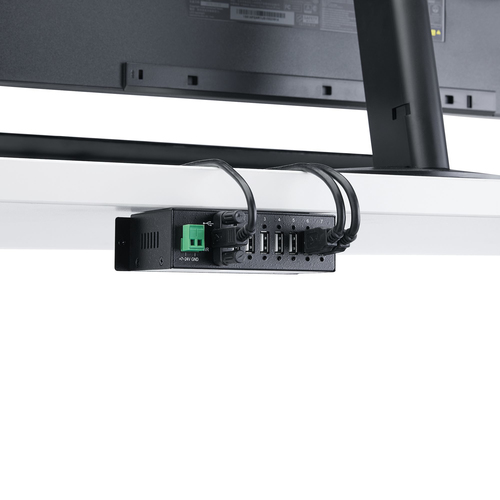

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Host interface | USB 2.0 Type-B |
|---|---|
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Ports quantity | 7 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
| Data transfer rate | 480 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Surge protection | Yes |
| LED indicators | Yes |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, REACH, TAA |
| Input voltage | 7 - 24 V |
|---|
| Width | 61.5 mm |
|---|---|
| Depth | 133 mm |
| Height | 36.3 mm |
| Weight | 283 g |
| Package width | 218 mm |
|---|---|
| Package depth | 151 mm |
| Package height | 54 mm |
| Package weight | 500 g |
| Cables included | USB |
|---|---|
| Manual | Yes |
| DIN rail kit included | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 170227 h |
|---|
| Master (outer) case width | 524 mm |
|---|---|
| Master (outer) case length | 434 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Chipset | Terminus - FE2.1 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
