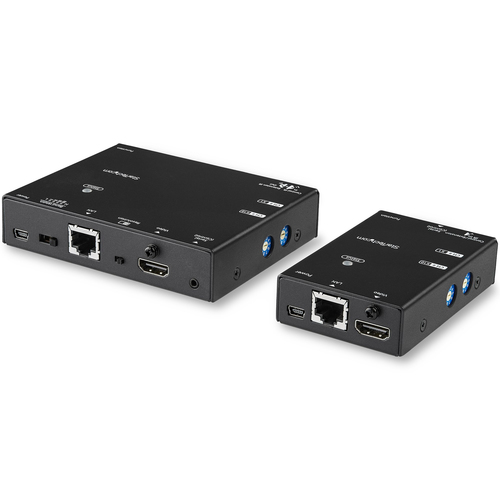

StarTech.com HDMI Over IP Extender Kit with Advanced Compression - TAA
Part number ST12MHDLNHK
HDMI EXTENDER OVER IP NETWORK HD VIDEO LAN ETHERNET EXTENSION
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
- Newer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
- Manufacturer
- StarTech.com
- Part number
- ST12MHDLNHK
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Ideal for Universities, Offices, and Restaurants
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.

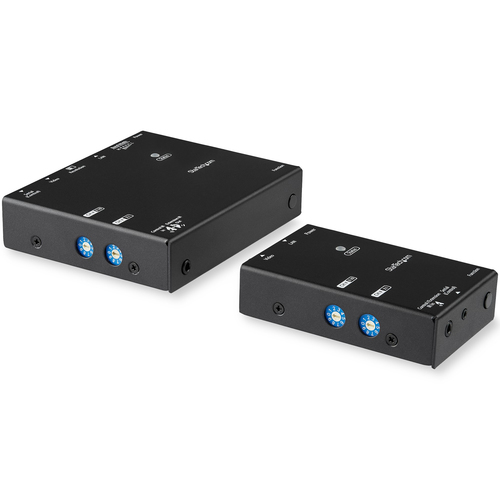

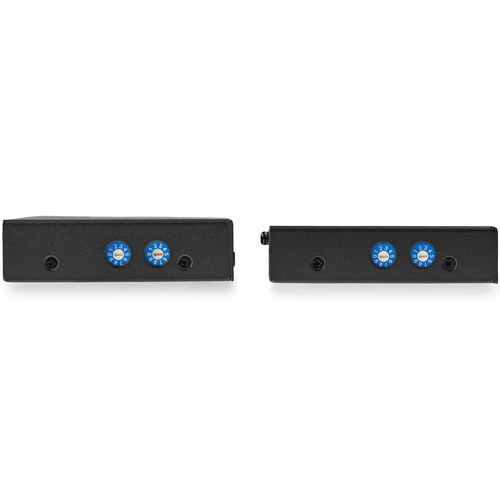

Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1920 x 100 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Status |
| Supported video modes | 1080p |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Rubber feet | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|

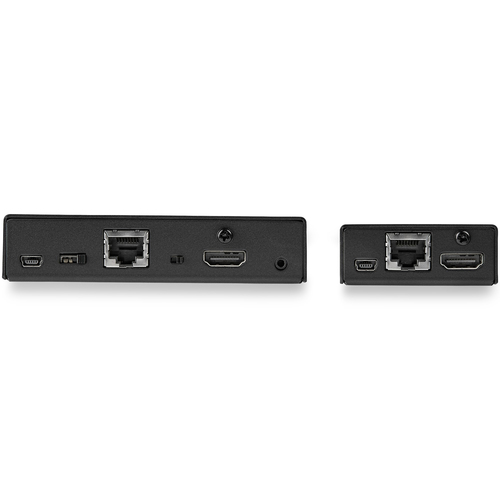

| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | Mini-USB B |
| Audio input | 3.5 mm |
| Audio output | 3.5 mm |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| AC input voltage | 100 - 240 V |
|---|---|
| Operating voltage | 5 V |
| Input current | 0.3 A |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 3.2 kg |
|---|
| Package width | 180 mm |
|---|---|
| Package depth | 308 mm |
| Package height | 72 mm |

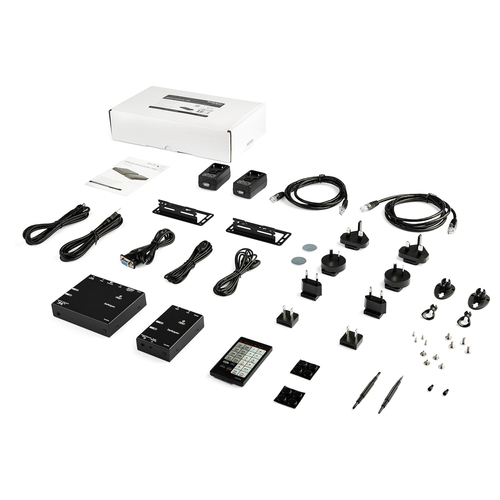

| AC adapter included | Yes |
|---|---|
| Cables included | LAN (RJ-45), Serial, USB |
| Included power plug types | ANZ, EU, NA, UK |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Remote control included | Yes |
| Mounting brackets included | Yes |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Master (outer) case width | 324 mm |
|---|---|
| Master (outer) case length | 406 mm |
| Master (outer) case height | 262 mm |
| Products per master (outer) case | 6 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
