StarTech.com 4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K - TAA
Part number ST121HDBTDK
70M 4K HDMI EXTENDER OVER CAT5E HDBASET USB POWERED HDMI EXTENSION
- Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
- Astonishing picture quality with support for UHD resolutions up to 4K
- Easy integration with existing CAT5/CAT6/CAT7 infrastructure
- Mounting hardware included
- 7.1 audio support
- Manufacturer
- StarTech.com
- Part number
- ST121HDBTDK
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)
This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.
Easy and Discreet Installation

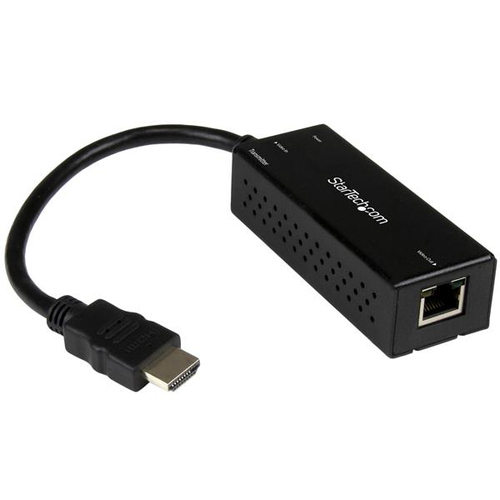

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
Get 4K Video at 130 ft. (40 m)
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
Seamless Integration with Your Existing Infrastructure
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Status |
| Cable length | 0.1 m |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA, REACH |
| Connectivity technology | Wired |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| AC input voltage | 100-240 V |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 68 mm |
|---|---|
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 252 g |
| Package width | 197 mm |
|---|---|
| Package depth | 294 mm |
| Package height | 74 mm |
| Package weight | 1.6 kg |
| AC adapter included | Yes |
|---|---|
| Cables included | USB |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Compliance certificates | RoHS |
|---|
| Master (outer) case width | 410 mm |
|---|---|
| Master (outer) case length | 455 mm |
| Master (outer) case height | 328 mm |
| Products per master (outer) case | 10 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
