StarTech.com 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
Part number ST1030USBM
10 PORT USB 3.0 HUB METAL TAA INDUSTRIAL MOUNTABLE HEAVY DUTY
- MAXIMIZE USB PERFORMANCE: This 10-port USB 3.0 (5Gbps) hub adds ten independent USB ports to your server room or industrial environment
- POWERED HUB: Operates with 7 ~ 24VDC input using the included terminal block or an optional 65W external power adapter (not included); Note: If power adapter is required, please consider our HB30A10AME; Supports USB Battery Charging Specification 1.2
- PROTECT YOUR DEVICES: This USB hub protects your connected devices with 15kV Air and 8kV contact ESD protection; It provides a surge protection of 350W on the downstream and upstream USB ports
- VERSATILE INSTALLATION OPTIONS: Built-in mounting brackets and included DIN mount rails to securely mount the USB 5Gbps hub to most surfaces such as a wall, under a desk or in a rack
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub is backed for 2-Years, including free lifetime 24 by 5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- ST1030USBM
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

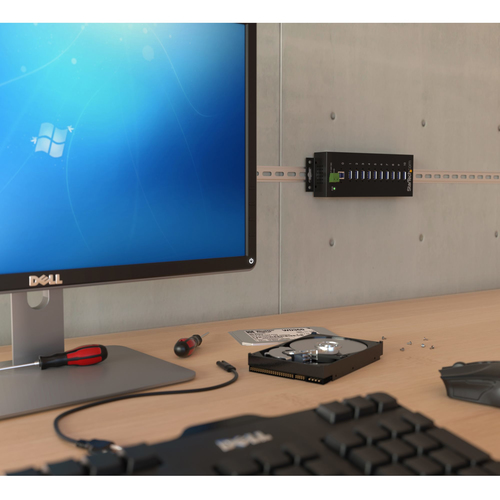

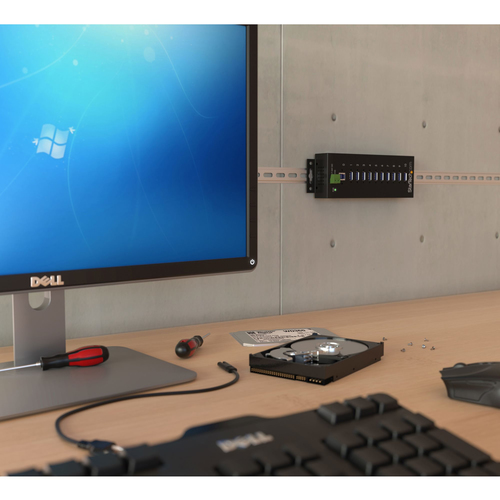

Locate the Hub Where You Need it Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| Ports quantity | 10 |
| Card reader integrated | No |
| Terminal block port | Yes |
| Data transfer rate | 5000 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Surge protection | Yes |
| LED indicators | Power |
| Cable length | 2.032 m |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Input voltage | 7 - 24 V |
|---|
| Width | 56 mm |
|---|---|
| Depth | 198 mm |
| Height | 31 mm |
| Weight | 357 g |
| Package width | 244 mm |
|---|---|
| Package depth | 169 mm |
| Package height | 57 mm |
| Package weight | 600 g |
| Cables included | USB |
|---|---|
| Manual | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 119388 h |
|---|
| Master (outer) case width | 440 mm |
|---|---|
| Master (outer) case length | 530 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Chipset | Genesys Logic - GL3520 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
