StarTech.com

StarTech.com 6in Slimline SATA to SATA Adapter with Power - F/M

Part number SLSATAADAP6

6IN SLIMLINE SATA TO SATA F/M ADAPER W/ POWER

1x Slimline SATA (Data & Power) Receptacle
1x SATA (Data & Power) Plug
Offers 6” in cable length

Manufacturer: StarTech.com
Part number: SLSATAADAP6
Condition: New
Category: Computer Systems › Server Computers
1GPA category: Hardware

Overview

Connect a Slimline SATA optical drive up to 6in away from a standard SATA motherboard connection

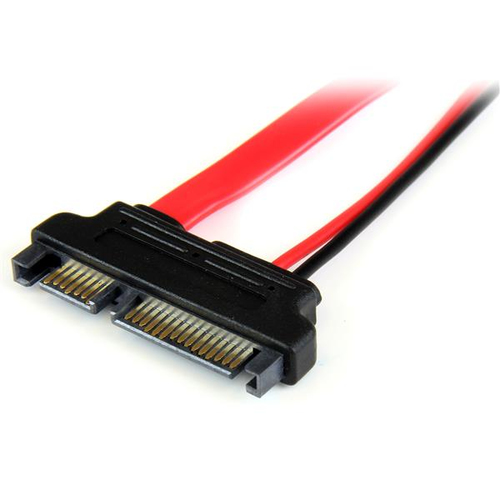

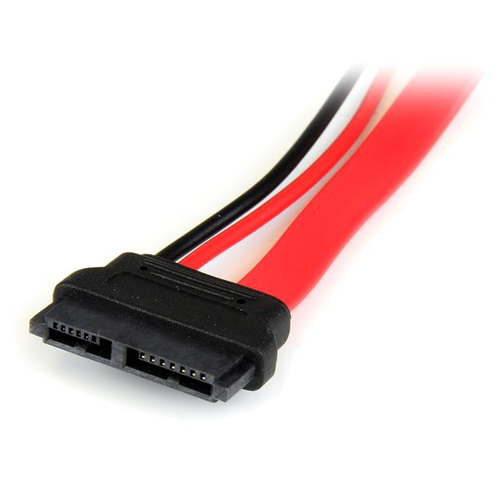

The SLSATAADAP6 Slimline SATA to SATA adapter features a Slimline Serial ATA connector on one end and a standard SATA data connector (with SATA power connector) on the other, enabling you to connect a Slimline SATA optical drive to standard motherboard and power supply connections.

The slim SATA adapter offers 6-inches in cable length, which compared to standard (non-cable) SATA/Slimline SATA adapter reduces strain off the drive connector and allows for flexible cable routing when positioning the Slimline SATA drive within the system case.

Designed and constructed to provide a dependable Slimline SATA to SATA connection, this high quality cable is backed by StarTech.com's Lifetime Warranty.

Specifications

Features
Cable length	0.1524 m
Cable type	SATA III
Connector 1	Slimline SATA 13 pin
Connector 2	SATA 7+15 pin
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector gender	Male/Female
Product colour	Red
AWG wire size	18
Maximum data transfer rate	6 Gbit/s
Weight	14 g

Certificates
Compliance certificates	RoHS
Certification	RoHS

Packaging data
Quantity per pack	1 pc(s)
Package width	129 mm
Package depth	141 mm
Package height	19 mm
Package weight	19 g

Logistics data
Harmonized System (HS) code	84733080
Master (outer) case width	336 mm
Master (outer) case length	492 mm
Master (outer) case height	218 mm
Products per master (outer) case	400 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
