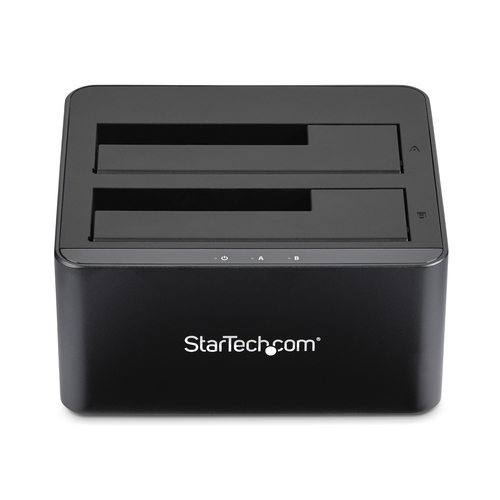

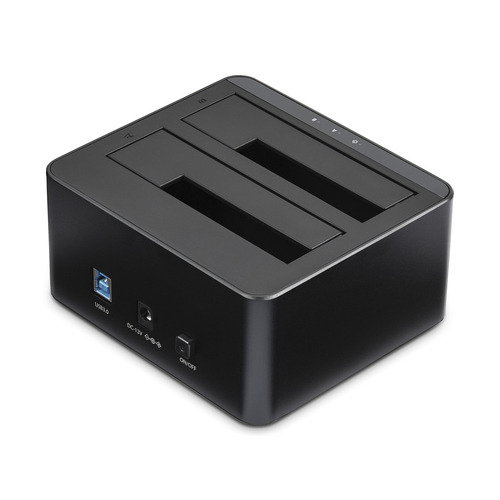

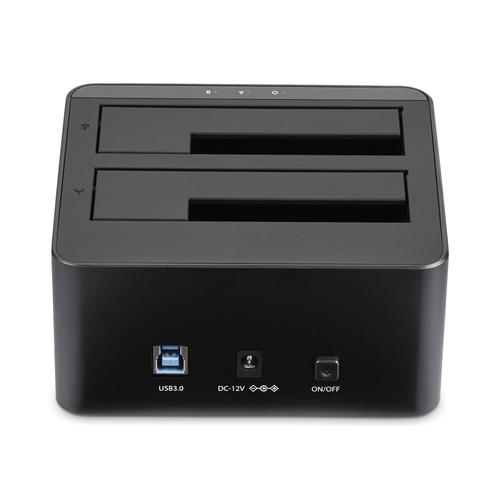

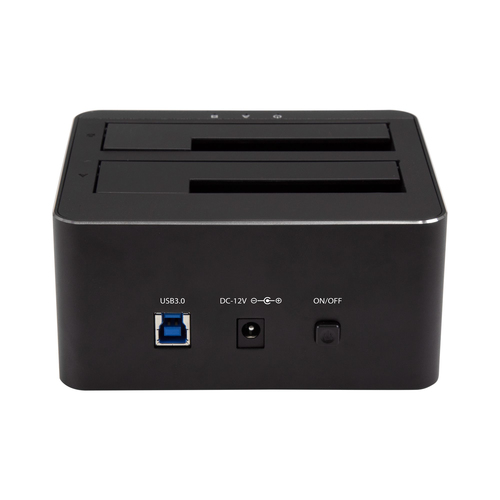

StarTech.com Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading
Part number SDOCK2U33V
SATA HARD DRIVE DOCKING STATION 2.5 3.5 HDD SSD USB 3.0 DOCK
- HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables access to 2.5/3.5" SATA drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps)
- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity; OS independent; Compatible w/ SATA I/II/III; IDE adapter (SAT2IDEADP) sold separately; Includes 4ft (1.2m) USB-A cable and universal power adapter
- PERFORMANCE: Toolless design enables hot-swapping of an idle drive while the other bay is in use; Drive bays with 15,000 insertion/removal cycle rating for maximum durability
- SPECS: 2-Bay Hard Drive Dock; SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; Hot-Swappable Drive Bays; Top-Loading/Toaster-Style with Drive Doors - LED Activity Lights
- Manufacturer
- StarTech.com
- Part number
- SDOCK2U33V
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA

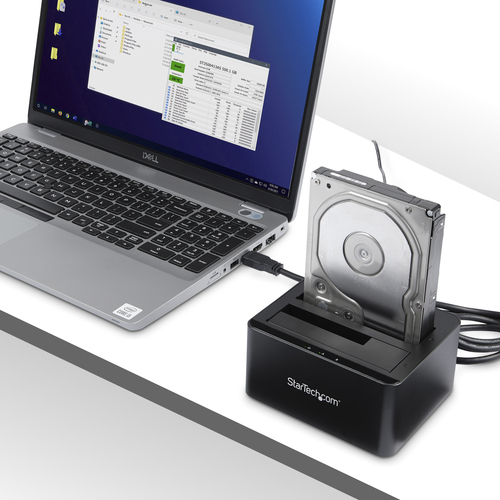

This dual-bay SATA HDD/SSD docking station lets you dock and swap drives from your desktop or laptop computer simultaneously, using a single USB port. It supports two 2.5/3.5” SATA hard drives or solid-state drives.
Transfer files quickly
The dual-bay docking station supports USB 3.0, also known as USB 3.1 Gen 1, providing fast data transfer speeds of up to 5Gbps. It also supports UASP, for enhanced performance.
Ideal for IT professionals, such as system administrators and technicians, the hard drive dock enables you to complete device-management tasks more efficiently, such as disk image duplication, data recovery, backing up and archiving hard drives, and transferring content between drives and devices. It also enhances your workflow, by providing quick access to your hard drives, with the ability to easily swap drives in and out as needed.
Easy drive access

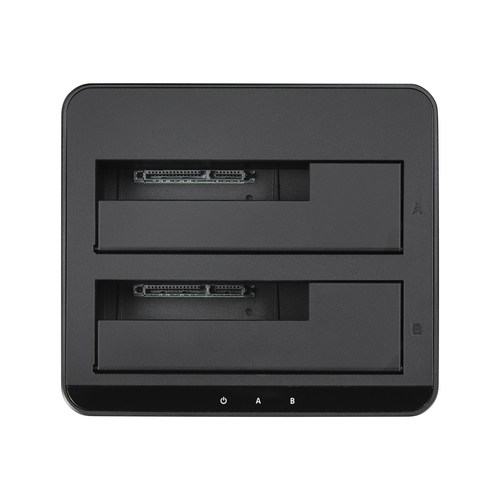

Designed for easy drive access, the hard drive dock enhances your workflow, by providing quick access to two hard drives, with the ability to easily swap drives in and out as needed. The hard drive dock features a convenient top-loading design with independent drive doors that make it easy to add or remove drives.
Get up and running quickly
The dual-bay SATA HDD/SSD docking station is OS independent, with no drivers or software installation required, for easy setup.
The SDOCK2U33V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Storage media type | HDD, SSD |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 10 TB |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Material | Aluminium, Plastic |
| Maximum data transfer rate | 6 Gbit/s |
| Plug and Play | Yes |
| RAID support | No |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| LED indicators | Activity, Power |
| On/off switch | Yes |
| UASP support | Yes |
| Certification | CE, FCC |
| Built-in fan | No |
|---|
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Width | 130 mm |
|---|---|
| Depth | 114 mm |
| Height | 62 mm |
| Weight | 370 g |
| Package width | 128 mm |
|---|---|
| Package depth | 137 mm |
| Package height | 126 mm |
| Package weight | 782 g |
| AC adapter included | Yes |
|---|---|
| Cables included | USB |
| User guide | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Chipset | ASMedia - ASM1153E |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 632 mm |
| Master (outer) case length | 283 mm |
| Master (outer) case height | 169 mm |
| Products per master (outer) case | 10 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
