StarTech.com Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading
Part number SDOCK2U33EB
2BAY ESATA HARD DRIVE DOCKING STATION 2.5 3.5 SATA HDD SSD DOCK
- HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables instant access to 2.5/3.5" SATA drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps) or eSATA; Toolless design facilitates quick drive hot-swapping

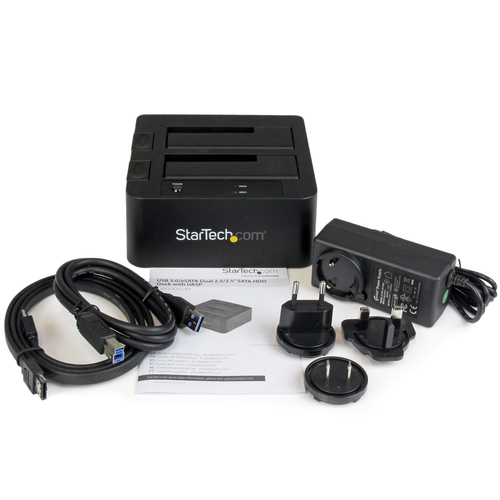

- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity; OS independent; Compatible w/ SATA I/II/III - IDE adapter (SAT2IDEADP) sold separately; Includes 3ft (1m) eSATA and USB-A cables and universal power adapter
- PERFORMANCE: Independent eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use; Drive bays with 15,000 insertion/removal cycle rating for maximum durability
- SPECS: 2-Bay Hard Drive Dock; SATA I/II/III; eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection; Toolless Design; Hot-Swappable Drive Bays; Top-Loading/Toaster-Style with Eject Buttons; LED Activity Lights
- Manufacturer
- StarTech.com
- Part number
- SDOCK2U33EB
- Condition
- New
- Category
- System Components › Computer Cases
- 1GPA category
- Hardware
Overview
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATA
The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.
For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Specifications
| Storage media type | HDD, SSD |
|---|---|
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 8 TB |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Product colour | Black |
|---|---|
| Material | Plastic |
| Maximum data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Certification | CE, FCC |
| AC input voltage | 100-240 V |
|---|---|
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Windows operating systems supported | Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Width | 132 mm |
|---|---|
| Depth | 143 mm |
| Height | 70 mm |
| Weight | 524 g |
| Package width | 188 mm |
|---|---|
| Package depth | 123 mm |
| Package height | 213 mm |
| Package weight | 1.1 kg |
| AC adapter included | Yes |
|---|---|
| Cables included | eSATA, USB |
| Manual | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Standard interfaces | eSATA, USB 3.2 Gen 1 (3.1 Gen 1) |
|---|---|
| Chipset | JMicron - JMS562 |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 686 mm |
| Master (outer) case length | 218 mm |
| Master (outer) case height | 471 mm |
| Products per master (outer) case | 10 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
