StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter
Part number SATPCIEXADAP
6IN SATA TO PCI EXPRESS CARD POWER ADAPTER 2X 15 PIN TO 6 PIN

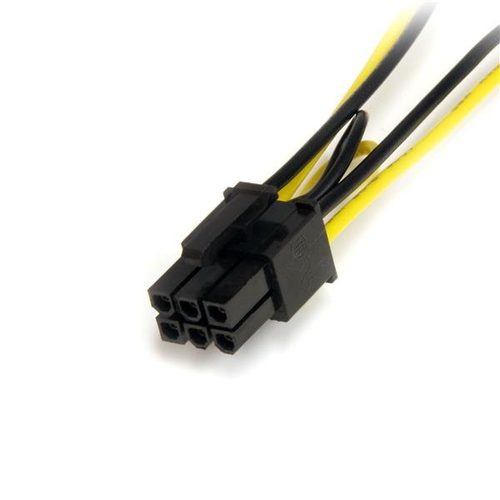

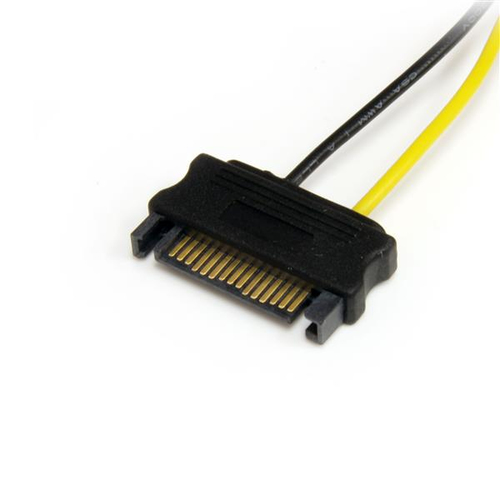

- SATA PCI EXPRESS POWER ADAPTER: 1x 6-pin PCI Express (male) connector to 2x 15-pin SATA (male) connectors; Connect a PCIe Video Card to a Power Supply that is not equipped with a PCIe connector
- SPECS: Cable length: 6.0in (15.2cm); Wire Gauge: 18AWG; Connector Plating: Gold; Jacket Material: PVC; Color: Black; Connector(s): 2x SATA Power (15 pin), 1x PCI Express Power (6 pin, v 1.x)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SATA to PCI Express video card power adapter cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- SATPCIEXADAP
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview

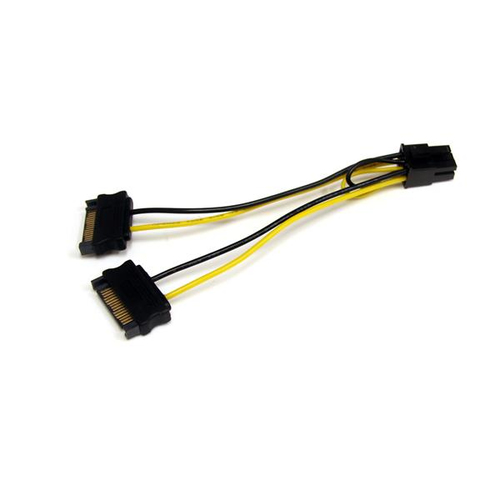

Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connector
The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.
NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.
Specifications
| Cable length | 0.15 m |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | PCI-E (6-pin) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Product colour | Black, Yellow |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, REACH |
| Width | 31.2 mm |
|---|---|
| Depth | 152.4 mm |
| Height | 20 mm |
| Weight | 15 g |
| Package width | 128 mm |
|---|---|
| Package depth | 114 mm |
| Package height | 21 mm |
| Package weight | 23 g |
| Jacket material | Polyvinyl chloride (PVC) |
|---|
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 308 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 312 mm |
| Products per master (outer) case | 600 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
