StarTech.com SATDOCKU3S
View 1 View 2 View 3 View 4
StarTech.com

StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

Part number SATDOCKU3S

USB HARD DRIVE DOCKING STATION 2.5 3.5 SATA HDD SSD USB 3.0 DOCK

  • HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 1 (5 Gbps)
  • DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately
  • PERFORMANCE: Toolless Top-loading design enables quick hot-swapping of idle drives; Backwards compatible with previous SATA & USB versions; No software / drivers required
  • SPECS: Single-Bay Hard Drive Dock; SATA I/II/III; USB 3.2 Gen 1 (5 Gbps) Host Connection; Top-Loading Drive Bay with Eject Button; Power and Activity LED Indicators; Includes USB 3.2 (5 Gbps) Type-A Cable and Universal Power Adapter
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Manufacturer
StarTech.com
Part number
SATDOCKU3S
Condition
New
Category
System Components › Computer Cases
1GPA category
Hardware

Overview

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

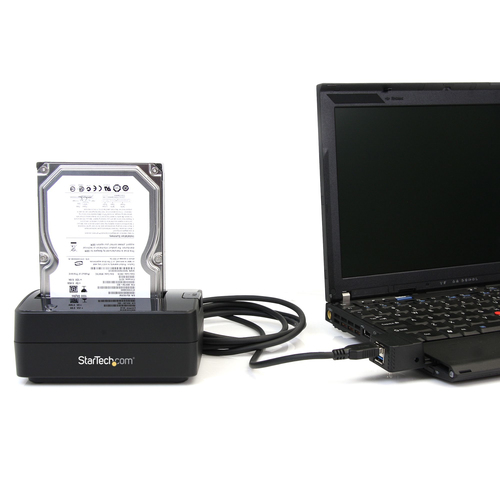

The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with hard drives up to 16TB at 7200 RPM) can be used to greatly enhance your computer's storage/backup capabilities.

Connected to the host computer through a single USB 3.0 SuperSpeed 5Gbps or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.

Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.

To ensure compatibility with your computer system, the SATDOCKU3S supports all of the leading operating system platforms, including: Microsoft Windows®, Apple® OSX, Linux, and Google Chrome OS™.

Specifications

Hard drive
Storage media typeHDD, SSD
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported1
Maximum storage capacity4 TB

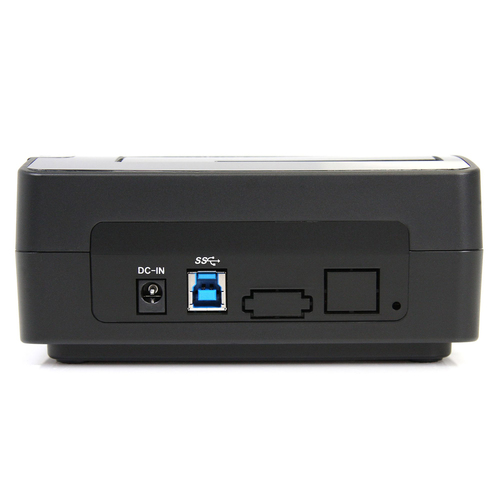

Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1
DC-in jackYes
Features
Product colourBlack
MaterialPlastic
Maximum data transfer rate5 Gbit/s
Hot-swapYes
Plug and PlayYes
LED indicatorsActivity, Power
UASP supportNo
CertificationCE, FCC
Cooling
Built-in fanNo
Power
AC input voltage110-240 V
Output voltage12 V
Output current2.5 A
Power plug typeType M
Software
Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
Width145 mm
Depth93 mm
Height65 mm
Weight400 g
Packaging data
Package width163 mm
Package depth172 mm
Package height94 mm
Package weight728 g

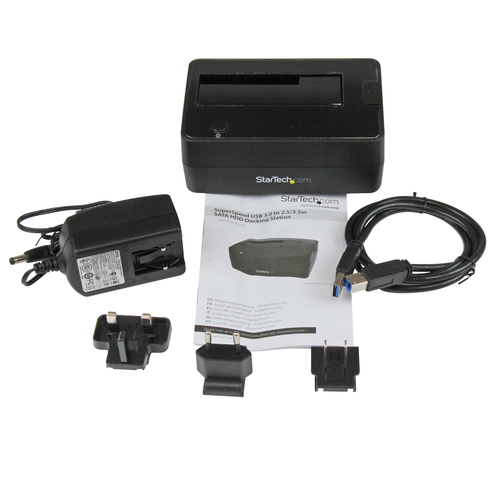

Packaging content
AC adapter includedYes
Cables includedUSB
ManualYes
Operational conditions
Operating temperature (T-T)5 - 80 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)8 - 80%
Other features
ChipsetASMedia - ASM1053
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width486 mm
Master (outer) case length192 mm
Master (outer) case height389 mm
Products per master (outer) case10 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
