StarTech.com 24in SATA to Right Angle SATA Serial ATA Cable
Part number SATA24RA1
24IN SATA HARD DRIVE CABLE W/ 1 RIGHT ANGLE CONN
- 1x SATA connector
- 1x Right-angled/90-degree SATA connector
- Supports full SATA 3.0 6Gbps bandwidth
- Provides 24" in cable length
- Compatible with both 3.5" and 2.5" SATA hard drives
- Manufacturer
- StarTech.com
- Part number
- SATA24RA1
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview
Make a right-angled connection to your SATA drive, for installation in tight spaces

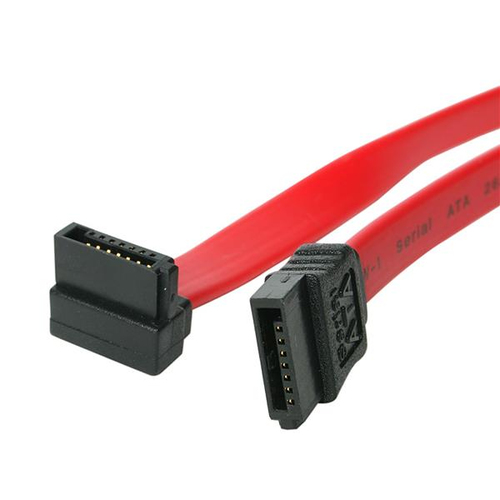

The SATA24RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 24-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.
The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.
Constructed of only top quality materials and designed for optimum performance and reliability this 24" SATA cable is backed by our lifetime warranty.
As an alternative, StarTech.com also offers an 24in Left Angle SATA cable (SATA24LA1), which provides the same simple installation as this right angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.
Specifications
| Cable length | 0.609 m |
|---|---|
| Cable type | SATA III |
| Connector 1 | SATA 7-pin |
| Connector 2 | SATA 7-pin |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Right |
| Connector gender | Female/Female |
| Product colour | Red |
| Maximum data transfer rate | 6 Gbit/s |
| Weight | 18 g |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, REACH |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 127 mm |
| Package depth | 132 mm |
| Package height | 20 mm |
| Package weight | 23 g |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 338 mm |
| Master (outer) case length | 492 mm |
| Master (outer) case height | 224 mm |
| Products per master (outer) case | 200 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
