Products › System Components

StarTech.com

StarTech.com 2.5in SATA to Mini SATA SSD Adapter Enclosure

Part number SAT2MSAT25

CONVERT AN MSATA MINI-SSD INTO A STANDARD 2.5IN SATA SSD - SATA TO MINI SATA - S

Manufacturer
StarTech.com
Part number
SAT2MSAT25
Condition
New
Category
System Components › Computer Cases
1GPA category
Hardware

Overview

Convert an mSATA mini-SSD into a Standard 2.5in SATA SSD

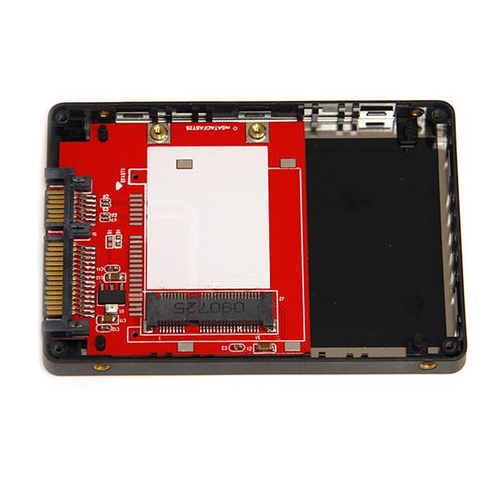

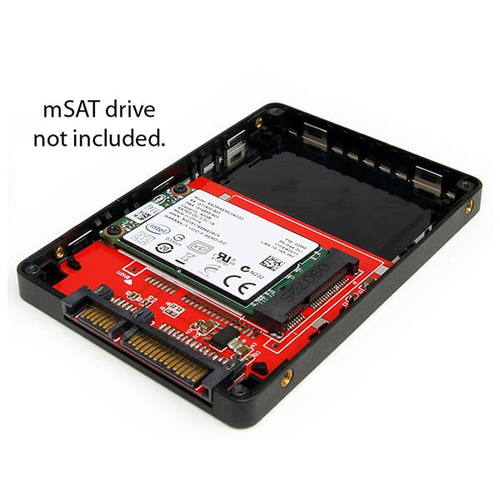

The SAT2MSAT25 2.5in SATA to Mini SATA SSD Adapter Enclosure turns an mSATA (Mini SATA) mini-SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA drive can be used.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.

Featuring all of the standard mounting points that a normal 2.5in hard drive uses, the converter can be installed into External Hard Drive Enclosures, Hard Drive Docking Stations or into desktop or laptop computers. The enclosure also features a unique design that enables seamless data pass-through with no conversion bottlenecks, enabling the mSATA drive to work as fast as it's allowed by the host system/interface.

The StarTech.com Advantage

- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller

- Fits virtually any full-length mSATA Solid State Drive into an housing that is identical to a standard 2.5in SATA drive

- A completely pass-through design allows for the mSATA drive to operate at full capacity without any conversion bottleneck

Specifications

Design
Product colourSilver
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 85 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width68 mm
Depth98 mm
Height9.8 mm
Weight50 g
Packaging data
Package width166 mm
Package depth131 mm
Package height32 mm
Package weight117 g
Logistics data
Harmonized System (HS) code84733020

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
