StarTech.com 4x SATA Power Splitter Adapter Cable
Part number PYO4SATA
4X SATA POWER SPLITTER ADAPTER CABLE SATA MALE TO 4X SATA FEMALE
- 1x SATA Power Plug to 4x SATA Power Receptacle
- Durable construction
- Manufacturer
- StarTech.com
- Part number
- PYO4SATA
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview
Add four extra SATA power outlets to your Power Supply

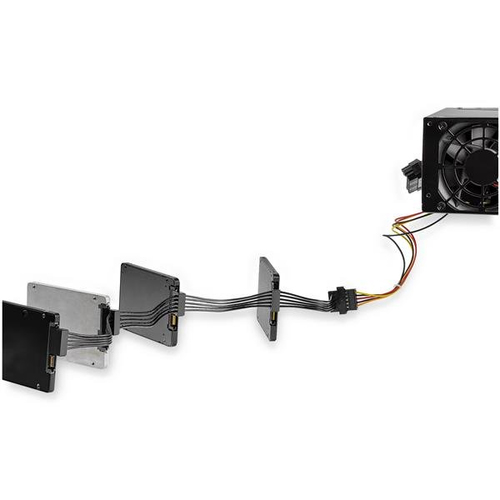

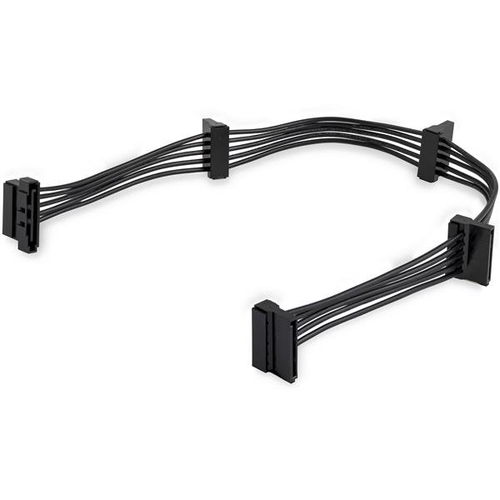

The PYO4SATA SATA power splitter cable (1-to-4) features a SATA male power connector that connects to a single computer power supply SATA connector, and breaks out into four SATA female power connectors.
The SATA power splitter cable overcomes the limit of the number of SATA devices, such as SSD drives or SATA optical drives that can be installed in the system, based on available PSU power connections. The cable eliminates the cost of having to upgrade the power supply to accommodate additional SATA drives.
Specifications
| Cable length | 0.4 m |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | 4 x SATA |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| AWG wire size | 18 |
| Compliance certificates | RoHS |
|---|---|
| Certification | REACH, CE, REACH |
| Width | 29 mm |
|---|---|
| Depth | 400 mm |
| Height | 16 mm |
| Weight | 33 g |
| Package width | 125 mm |
|---|---|
| Package depth | 187 mm |
| Package height | 28 mm |
| Package weight | 38 g |
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 512 mm |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 100 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
