StarTech.com 6in SATA Power Y Splitter Cable Adapter - M/F
Part number PYO2SATA
6IN SATA POWER Y SPLITTER CABLE ADAPTER SATA MALE TO 2X SATA FEMALE
- 0.15 m

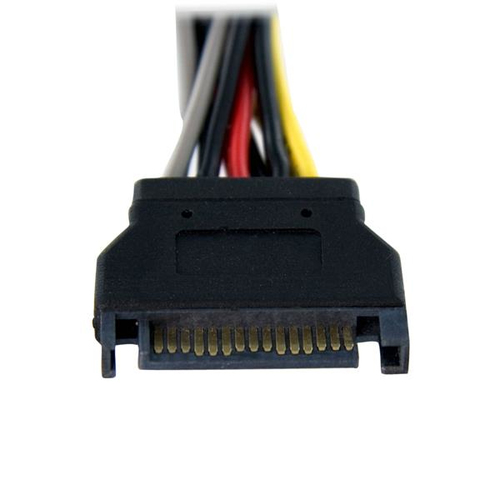

- SATA 15-pin Male Straight

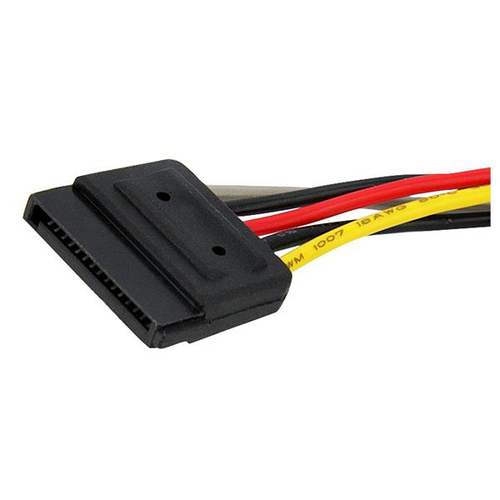

- 2 x SATA 15-pin Female Straight
- Black
- Manufacturer
- StarTech.com
- Part number
- PYO2SATA
- Condition
- New
- Category
- Cables › Storage Cables
- 1GPA category
- Hardware
Overview
Add an extra SATA power outlet to your Power Supply

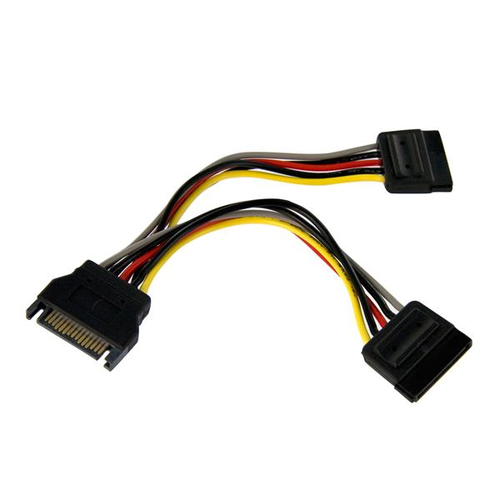

The PYO2SATA SATA power splitter cable features a SATA male power connector that connects to a single computer power supply SATA connector, and breaks out into two SATA female power connectors. The SATA power splitter/Y-cable overcomes the limit of the number of SATA drives that can be installed in the system based on available PSU power connections, and eliminates the cost of having to upgrade the power supply to accomodate an additional SATA drive.
The StarTech.com Advantage
- Allows connection of two SATA drives to one SATA power supply connector
- Easy to use and install
- Backed by StarTech.com's lifetime warranty
Specifications
| Cable length | 0.15 m |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | 2 x SATA 15-pin |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE |
| Weight | 28 g |
|---|
| Package width | 219.5 mm |
|---|---|
| Package depth | 128 mm |
| Package height | 60 mm |
| Package weight | 32 g |
| Operating temperature (T-T) | 20 - 80 °C |
|---|---|
| Operating relative humidity (H-H) | 40 - 60% |
| Harmonized System (HS) code | 84733080 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
