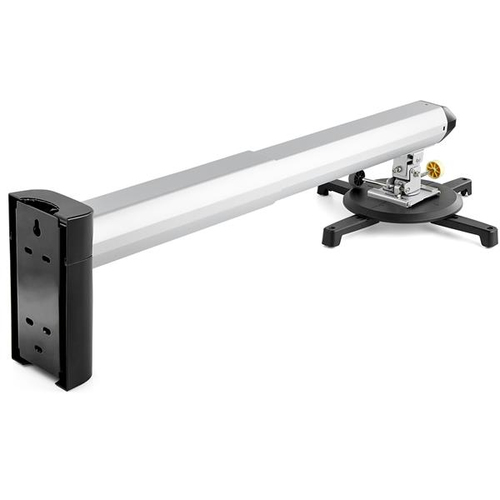

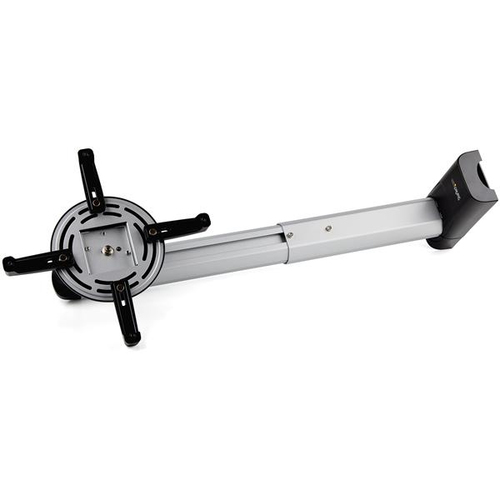

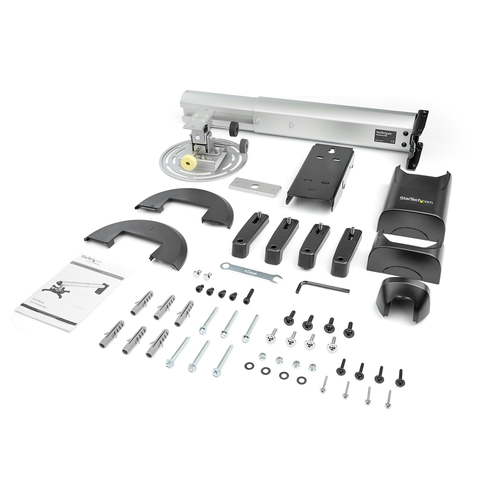

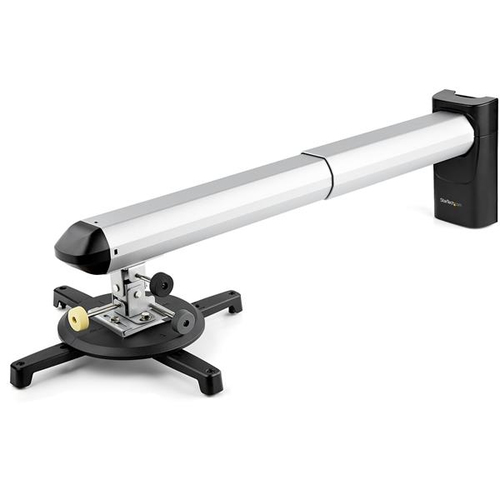

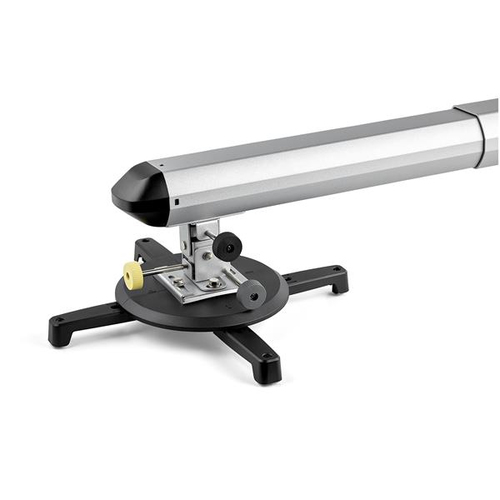

StarTech.com Universal Projector Wall Mount - Projector Mount supports Short & Ultra Short Throw Projectors up to 33lb (15kg) - Tilt/Swivel/Rotate - Adjustable 16.5" to 27.7" from Wall - TAA
Part number PROJWALLMNT
PROJECTOR WALL MOUNT UNIVERSAL PROJECTOR SUPPORT WALL MOUNT
- UNIVERSAL PROJECTOR WALL MOUNT: Supports short throw & ultra-short throw projectors w/ mounting hole pattern ranging up to 12.8" (325mm) in diameter; supports projectors up to 33.1lb (15kg)
- ADJUSTABLE PROJECTOR MOUNT: Supports both short and ultra short throw projectors; The arm allows you to position a projector between 16.5" & 27.7" from the wall (w/ incl tools) to adjust throw ratio
- PRECISE ADJUSTABILITY: Easily optimize projector placement with 3 color coded dials for +/-10° swivel, +/-5° tilt (pitch), +/-10° rotate (roll); +/-20mm lateral shift; Secure adjustment w/ incl wrench
- BRAND COMPATIBILITY: Projector wall mount compatible w/ projectors from brands like BenQ, Acer, Optoma, Eiki, Hitachi, Sanyo, NEC, Epson, Sony, LG & Dell among others (several screw sizes incl)
- THOUGHTFUL DESIGN: Heavy duty steel & aluminum construction, this wall projector mount/holder kit supports in-wall cable routing & integrated cable management; Includes decorative snap-on covers
- Manufacturer
- StarTech.com
- Part number
- PROJWALLMNT
- Condition
- New
- Category
- Accessories › Projector Accessories
Overview
Adjustable Projector Mount | Up to 27.7” Extension from Wall | Steel / Aluminum
The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It's ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.
Wide Compatibility with Short Throw Projectors
Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).
Adjust the Distance from the Wall
Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5" to 27.7" (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
Specifications
| Mounting type | Wall |
|---|---|
| Maximum weight capacity | 15 kg |
| Product colour | Black, Silver |
| Housing material | Aluminium, Plastic, Steel |
| Adjustable arm | Yes |
| Swivel angle | 360° |
| Tilt angle range | -25 - 25° |
| Distance to the wall (min) | 42 cm |
| Distance to the wall (max) | 70.5 cm |
| Width | 180 mm |
|---|---|
| Height | 735 mm |
| Depth | 195 mm |
| Weight | 3.41 kg |
| Package width | 575 mm |
| Package depth | 290 mm |
| Package height | 150 mm |
| Package weight | 4.4 kg |
| Screws included | Yes |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Number of anchors included | 6 |
| Number of screws | 26 |
| Number of washers included | 4 |
| Number of nuts | 4 |
| Screwdriver included | Yes |
| Certification | CE, RoHS |
|---|
| Quantity per pack | 1 pc(s) |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 83024190 |
| Master (outer) case width | 285 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 145 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
