StarTech.com
StarTech.com 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable
Part number PNL9M16
16IN 9PIN SERIAL MALE TO 10PIN MOTHERBOARD HEADER PANEL MOUNT CABL
- Fasten a DB9 (RS232) Serial port to an existing face or wall plate
- Add legacy hardware to newer systems
- Manufacturer
- StarTech.com
- Part number
- PNL9M16
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector

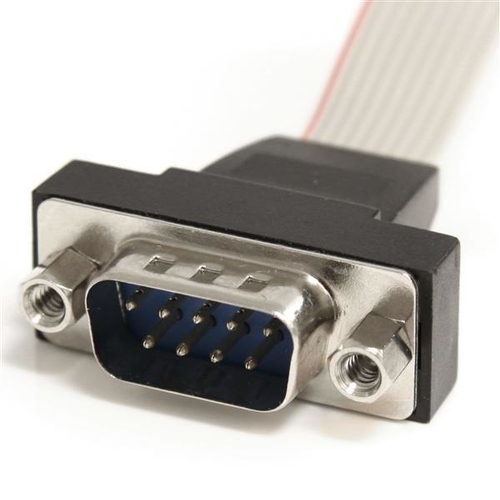

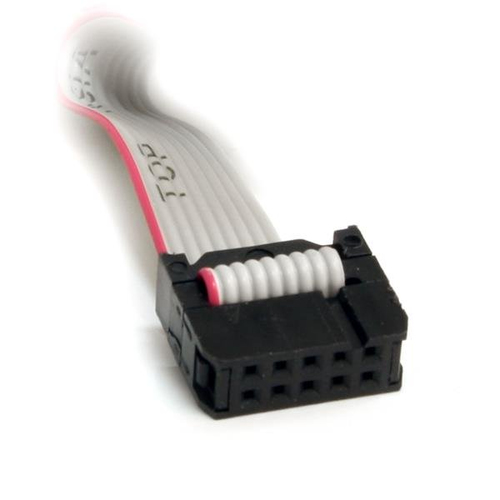

The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.
This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals.
Specifications
| Product colour | Grey |
|---|---|
| Cable length | 0.4064 m |
| Connector 1 | DB-9 |
| Connector 2 | IDC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| AWG wire size | 28 |
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 220 mm |
| Package depth | 125 mm |
| Package height | 19 mm |
| Package weight | 22 g |
| Certification | CE, REACH, RoHS |
|---|
| Weight | 17 g |
|---|
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 490 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 400 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
