StarTech.com
StarTech.com 16in (40cm) 9 Pin Serial Male to 10 Pin Motherboard Header Slot Plate
Part number PLATE9M16
1 PORT DB9 RS232 SERIAL ATA SLOT PLATE BRACKET PA716A
- 1* DB9 serial expansion port and bracket
- Manufacturer
- StarTech.com
- Part number
- PLATE9M16
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Add an extra serial port to the back of your PC from your motherboard.

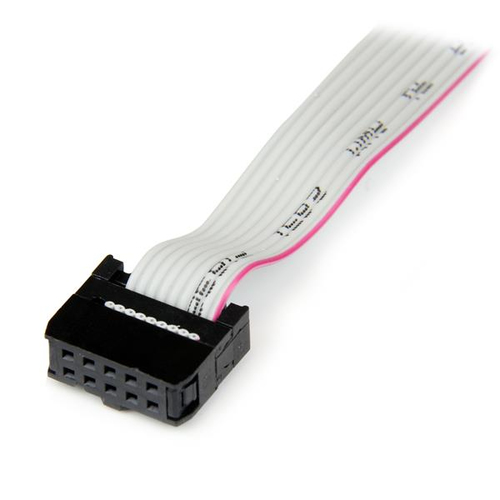

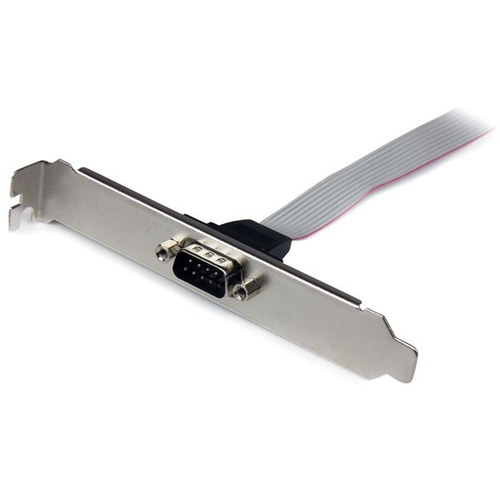

This 9-pin Serial to 10-pin Header Slot Plate adapter features one DB9 male connector and one IDC10 connector. The adapter is constructed of high quality components and expertly designed to ensure durability and reliability.
Please refer to the Technical Specifications to ensure your motherboard is compatible with this product.
Specifications
| Host interface | IDC |
|---|---|
| Output interface | Serial |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Internal | Yes |
|---|---|
| Product colour | Grey |
| Certification | CE, REACH |
| Compliance certificates | RoHS |
|---|
| Width | 121 mm |
|---|---|
| Depth | 406.4 mm |
| Height | 21 mm |
| Weight | 31 g |
| Quantity | 1 |
|---|---|
| Package width | 126 mm |
| Package depth | 153 mm |
| Package height | 24 mm |
| Package weight | 36 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 250 pc(s) |
| Master (outer) case width | 451 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 344 mm |
| I/O ports | DB9 Male IDC 10 |
|---|---|
| Cable length | 0.406 m |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
