StarTech.com 4 Port PCI Express Low Profile High Speed USB Card
Part number PEXUSB4DP
4 PORT USB 2.0 PCIE CARD LOW PROFILE PCI EXPRESS EXPANSION CARD
- Internal
- Host interface: PCIe
- Output interface: USB 2.0
- 0.48 Gbit/s
- Green
- Manufacturer
- StarTech.com
- Part number
- PEXUSB4DP
- Condition
- New
- Category
- Computer Systems › Server Computers
- 1GPA category
- Hardware
Overview

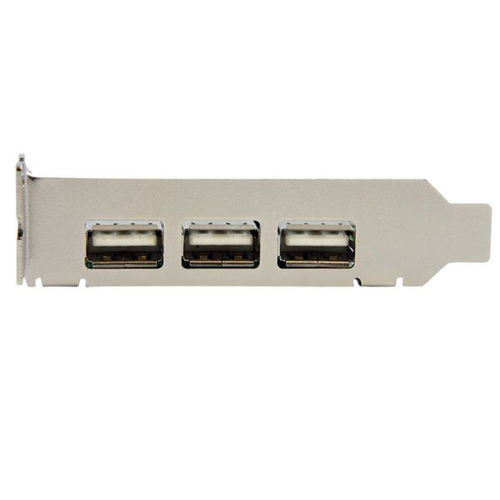

Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

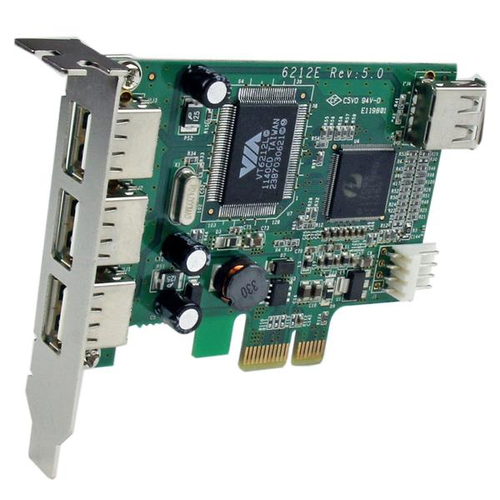

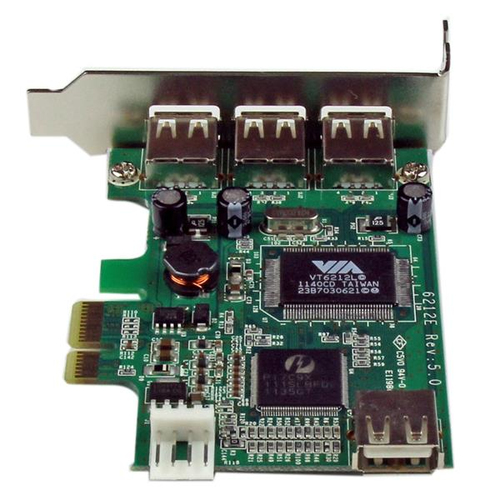

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
The StarTech.com Advantage
- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Host interface | PCIe |
|---|---|
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 3 |
| Internal USB 2.0 ports quantity | 1 |
| Internal | Yes |
|---|---|
| Product colour | Green |
| Certification | CE, FCC, REACH, TAA |
| Chipset | VIA/VLI - VT6212 |
|---|---|
| Data transfer rate (max) | 0.48 Gbit/s |
| Operating temperature (T-T) | 0 - 75 °C |
|---|---|
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | RoHS |
|---|
| Width | 80 mm |
|---|---|
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 46 g |
| Quantity | 1 |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 132 g |
| Harmonized System (HS) code | 84733020 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
