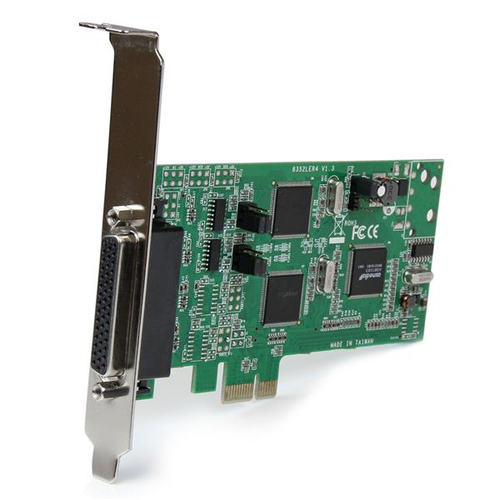

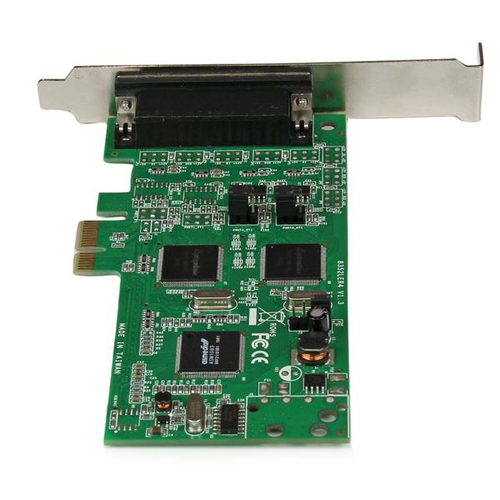

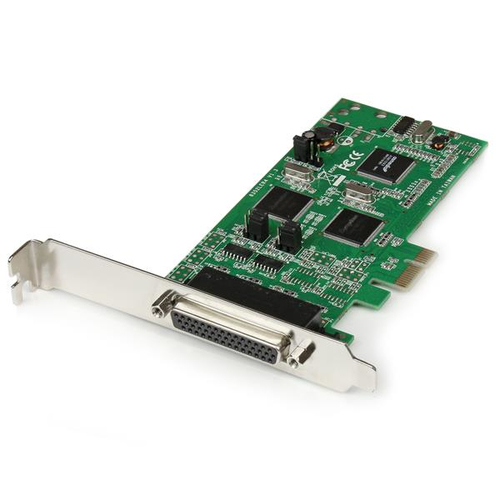

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA
Part number PEX4S232485
4 PORT PCI EXPRESS SERIAL COMBO CARD RS232 / RS485 PCIE CARD SERIAL
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- RS232 data transfer rates up to 460 Kbps
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver

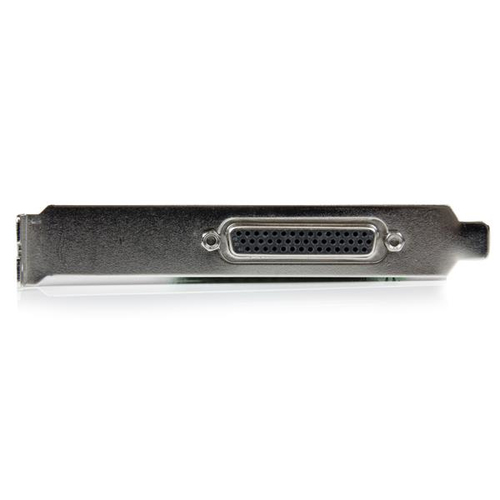

- Standard and low-profile bracket included
- Compliant with PCI-Express Specification 1.0a
- Supports PCI Power Management 1.1
- Manufacturer
- StarTech.com
- Part number
- PEX4S232485
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
- 1GPA category
- Hardware
Overview
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

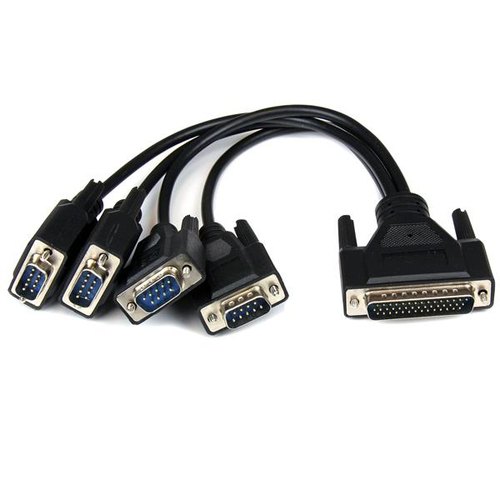

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Host interface | PCIe |
|---|---|
| Output interface | Serial |
| Serial ports quantity | 4 |
| Serial interface type | RS-232/422/485 |
| Internal | Yes |
|---|
| Chipset | SystemBase SB16C1052PCI |
|---|---|
| FIFO (First In, First Out) | 256 B |
| Operating temperature (T-T) | 0 - 100 °C |
|---|---|
| Storage temperature (T-T) | 0 - 150 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Linux operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Width | 125 mm |
|---|---|
| Depth | 70 mm |
| Height | 20 mm |
| Weight | 67.4 g |
| User guide | Yes |
|---|---|
| Package width | 146 mm |
| Package depth | 210 mm |
| Package height | 41 mm |
| Package weight | 390 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 474 mm |
| Master (outer) case height | 240 mm |
| Data transfer rate | 0.4608 Mbit/s |
|---|---|
| Connectivity technology | Wired |
