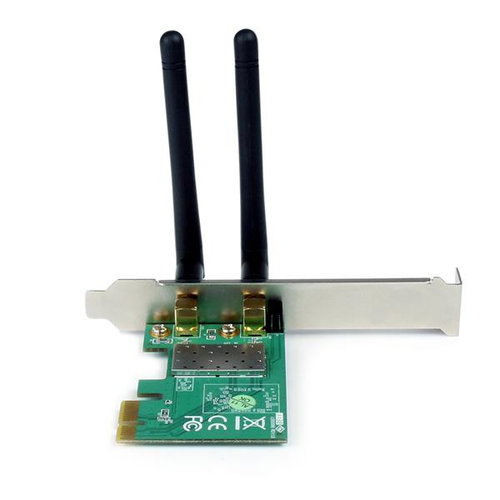

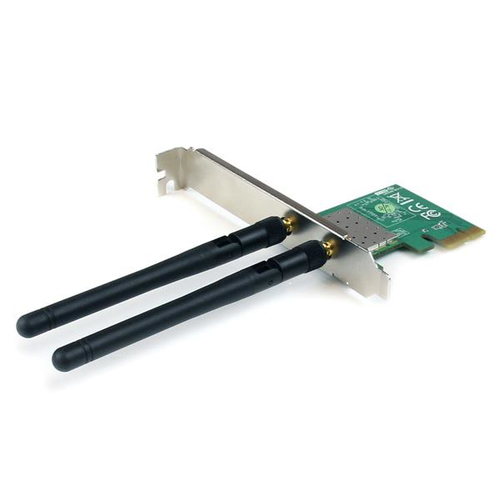

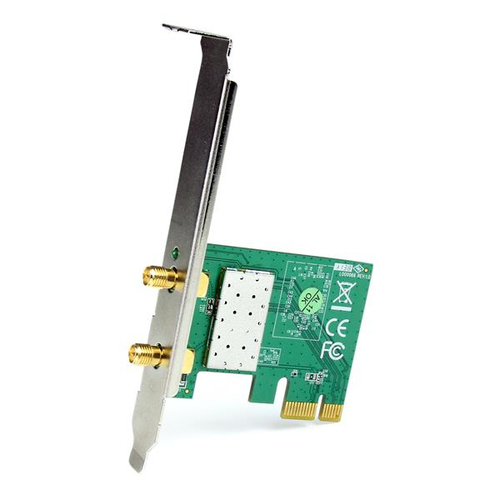

StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card – 2T2R 2.2 dBi
Part number PEX300WN2X2
PCIE WIRELESS CARD WIFI ADAPTER NETWORK CARD WIRELESS N ADAPTER
- Wireless
- PCI Express WLAN
- 300 Mbit/s
- Wi-Fi Single-band (2.4 GHz)
- Internal Chipset: Ralink - RT5392
- Manufacturer
- StarTech.com
- Part number
- PEX300WN2X2
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview
The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.
Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.
This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.
The StarTech.com Advantage
- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience

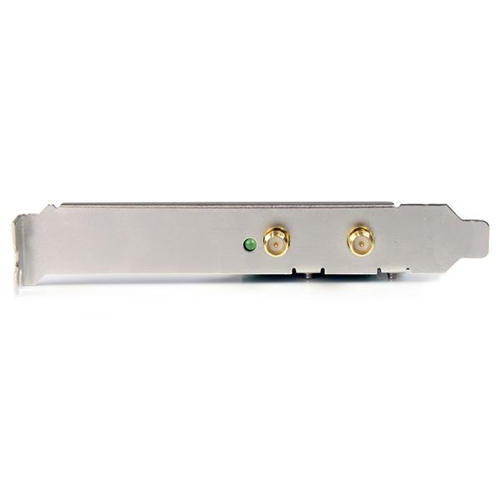

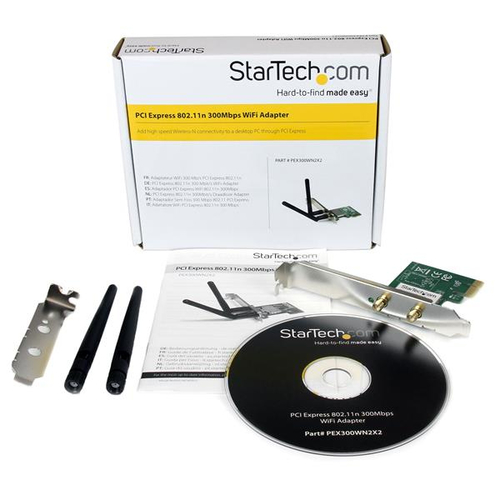

- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
Specifications
| Connectivity technology | Wireless |
|---|---|
| Host interface | PCI Express |
| Interface | WLAN |
| Maximum data transfer rate | 300 Mbit/s |
|---|---|
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.484 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Modulation | CCK, DBPSK, DQPSK, DSSS, OFDM |
| Security algorithms | AES, TKIP, WEP, WPA, WPA2-PSK |
| Full duplex | Yes |
| Supported network protocols | CSMA/CA |
| Internal | Yes |
|---|---|
| Antenna | Yes |
| Antenna design | External |
| Antenna connector type | RP-SMA |
| Chipset | Ralink - RT5392 |
| LED indicators | Activity, Link |
| Certification | CE, FCC, REACH, TAA |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2 |
| Operating temperature (T-T) | -10 - 70 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 49 mm |
|---|---|
| Depth | 75 mm |
| Height | 18 mm |
| Weight | 38 g |
| Drivers included | Yes |
|---|---|
| Low-profile bracket | Yes |
| Quantity per pack | 1 pc(s) |
| Package width | 140 mm |
| Package depth | 165 mm |
| Package height | 35 mm |
| Package weight | 158 g |
| Mounting brackets included | Yes |
|---|---|
| Manual | Yes |
| Compliance certificates | RoHS |
|---|
| Gain | 2.2 dBi |
|---|---|
| Antennas quantity | 2 |
| Channel bandwidth | 40 MHz |
| Bandwidth note | 20/40 MHz |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
