StarTech.com

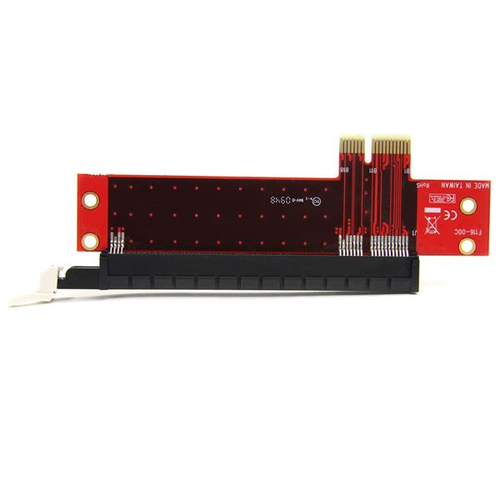

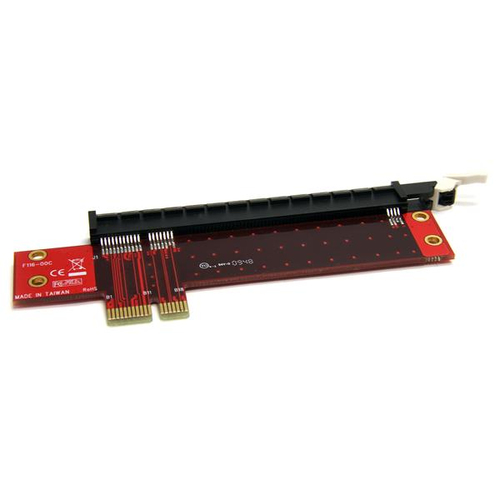

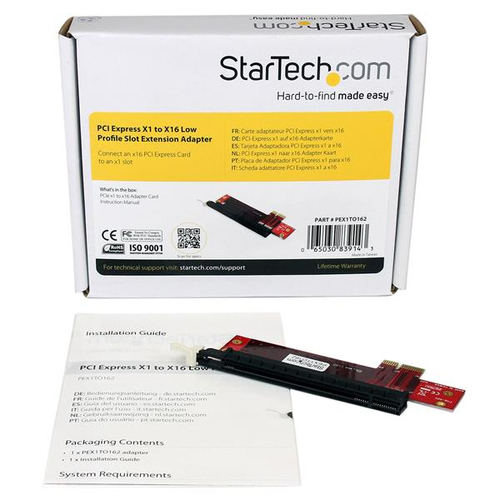

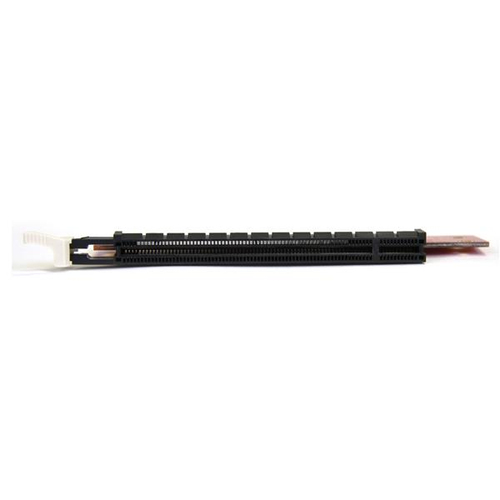

StarTech.com PCI Express X1 to X16 Low Profile Slot Extension Adapter - TAA
Part number PEX1TO162
PCIE EXTENSION X1 X16 ADAPTER PCIE LOW PROFILE EXTENSION ADAPTER
- x16 lane PCIe slot connector to x1 lane
- Designed to properly mount a low profile card into a full profile slot
- Complete pass-through designs supports the latest PCI Express speeds
- Manufacturer
- StarTech.com
- Part number
- PEX1TO162
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Connect a low profile x16 PCI Express Card to an x1 slot
This PCIe x1 to PCIe x16 Slot Extension adapter provides enhanced compatibility between motherboards and a variety of PCI Express expansion cards, allowing you to install a PCIe card (x1 - x16) in an x1 slot.
The PCI Express x1 to x16 adapter accommodates low profile x2, x4, x8, x12 or x16 PCI Express cards, eliminating the cost and hassle of upgrading a PCIe card or replacing the motherboard for the sake of compatibility.
Specifications
| Host interface | PCIe |
|---|---|
| Output interface | PCIe |
| Internal | Yes |
|---|---|
| Product colour | Red |
| Certification | CE, REACH, TAA |
| Data transfer rate (max) | 2.5 Gbit/s |
|---|
| Width | 44.3 mm |
|---|---|
| Depth | 127 mm |
| Height | 8 mm |
| Weight | 12 g |
| Manual | Yes |
|---|---|
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 80 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 322 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
