StarTech.com

StarTech.com 7 Port PCI USB Card Adapter - TAA

Part number PCIUSB7

7 PORT USB 2.0 PCI ADAPTER CARD PCI USB CONTROLLER CARD

4 external USB 2.0 ports and 3 internal USB 2.0 port/headers
High Speed USB 2.0 compliant, with support for data transfer rates up to 480Mbps
Backwards compatible with USB1.1/1.0 devices
Up to 500mA of power per port
Compliant with USB EHCI revision 0.95 and UHCI 1.1 specifications
Compliant with PCI revision 2.2 specification
Supports up to 127 USB devices (requires addition USB hubs)
Plug-and-Play and Hot-Swap compatible

Manufacturer: StarTech.com
Part number: PCIUSB7
Condition: New
Category: Computer Systems › Server Computers
1GPA category: Hardware

Overview

Add 7 USB 2.0 Ports to your PC through a PCI slot

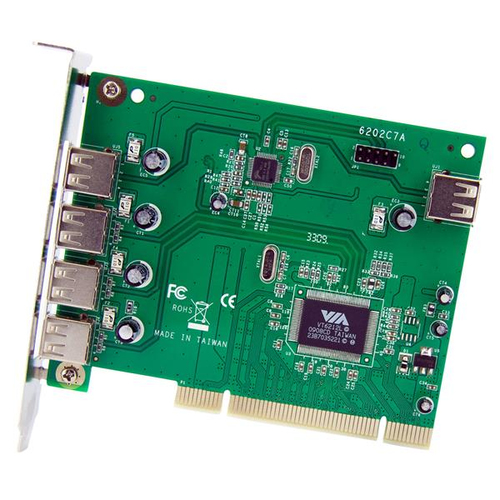

This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC.

The PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard.

An all-in-one solution, the PCI USB card supports USB 2.0 device connections for full data transfer speeds of up to 480Mbps, and is backward compatible with USB 1.1 devices (max. transfer rate 12Mbps), allowing you to connect any USB device to the computer without having to worry about compatibility issues.

Designed and constructed to provide long-lasting USB capability, the adapter card is backed by StarTech.com's free lifetime technical support.

Specifications

Ports & interfaces
Host interface	PCI/PCI-X
Output interface	USB 2.0
Expansion card standard	PCI 2.2
USB 2.0 ports quantity	4
Internal USB 2.0 ports quantity	1

Design
Internal	Yes
Product colour	Green
Hot-swap	Yes
Certification	CE, FCC, TAA, REACH

Features
Chipset	VIA/VLI - VT6212
Plug and Play	Yes

System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details
Compliance certificates	RoHS

Weight & dimensions
Width	120 mm
Depth	122 mm
Height	20 mm
Weight	75 g

Packaging data
Drivers included	Yes
Manual	Yes
Package width	143 mm
Package depth	174 mm
Package height	33 mm
Package weight	138 g

Logistics data
Harmonized System (HS) code	84733020
Products per master (outer) case	75 pc(s)
Master (outer) case width	356 mm
Master (outer) case length	686 mm
Master (outer) case height	315 mm

Other features
Data transfer rate	480 Mbit/s

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
