StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - TAA
Part number PCI2S4851050
2 PORT PCI SERIAL ADAPTER CARD W/ 2X RS422 AND RS485 SERIAL PORT
- Supports maximum data transmission rate of 128Kbps
- 16C1050 UART with 256-byte Deep FIFO
- Supports 2-wire and 4-wire RS485 modes
- Jumper pins for RS422/485 toggling
- Supports Hardware and Software flow control
- Supports PCI Power Management 1.1
- Compliant with PCI Local Bus Specification 2.3
- Manufacturer
- StarTech.com
- Part number
- PCI2S4851050
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
- 1GPA category
- Hardware
Overview
Add two RS422/485 serial ports through a standard or low profile PCI expansion slot

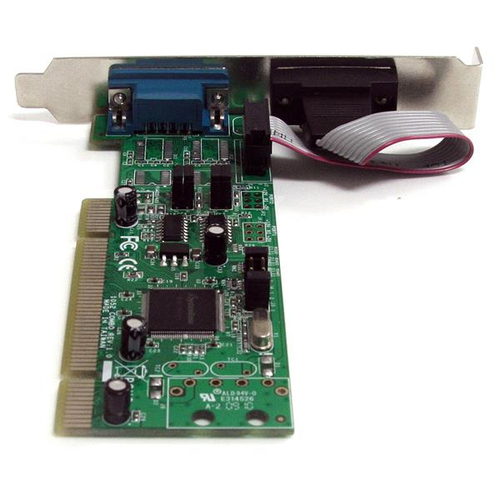

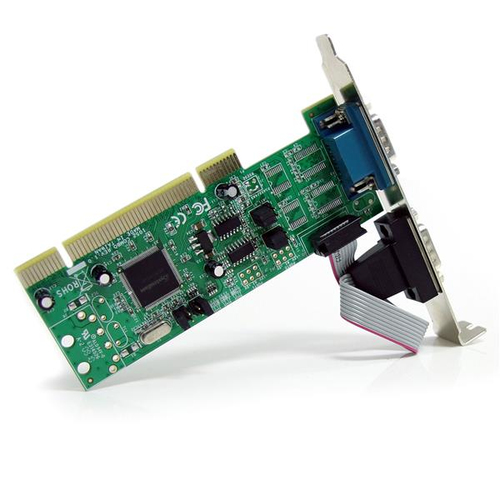

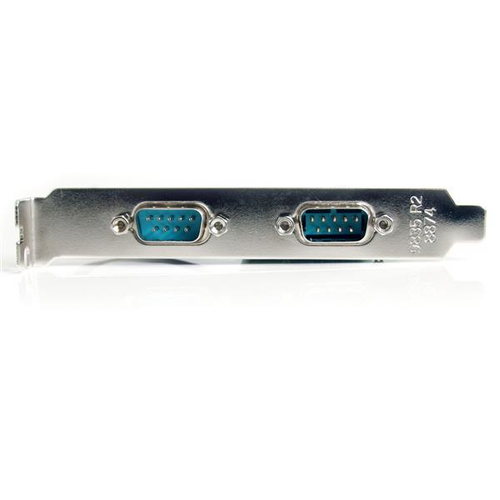

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

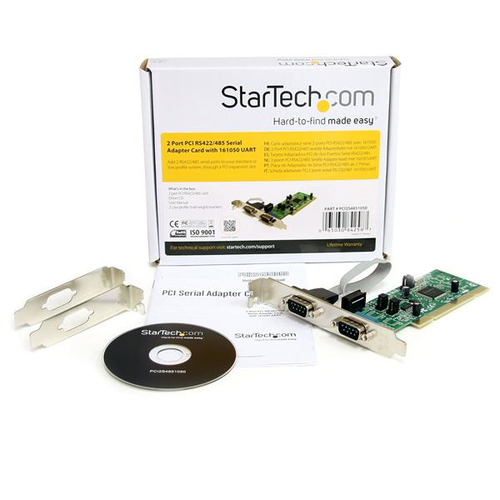

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Host interface | PCI/PCI-X |
|---|---|
| Output interface | Serial |
| Serial ports quantity | 2 |
| Serial interface type | RS-422, RS-485 |
| Internal | Yes |
|---|---|
| Certification | CE, FCC |
| Chipset | SystemBase -SB16C1052PCI |
|---|---|
| Baud rate | 128 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Operating temperature (T-T) | -10 - 80 °C |
|---|---|
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 |
| Compliance certificates | RoHS |
|---|
| Width | 15 mm |
|---|---|
| Depth | 120 mm |
| Height | 45 mm |
| Weight | 58 g |
| Drivers included | Yes |
|---|---|
| Manual | Yes |
| Package width | 144 mm |
| Package depth | 176 mm |
| Package height | 33 mm |
| Package weight | 152 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 352 mm |
| Master (outer) case length | 684 mm |
| Master (outer) case height | 316 mm |
| Data transfer rate | 0.128 Mbit/s |
|---|---|
| Compatible operating systems | Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
