Overview
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

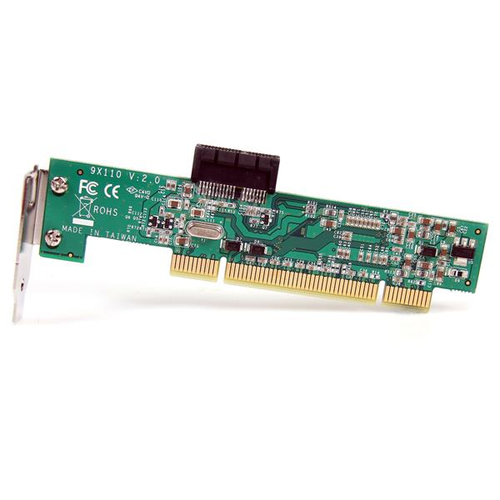

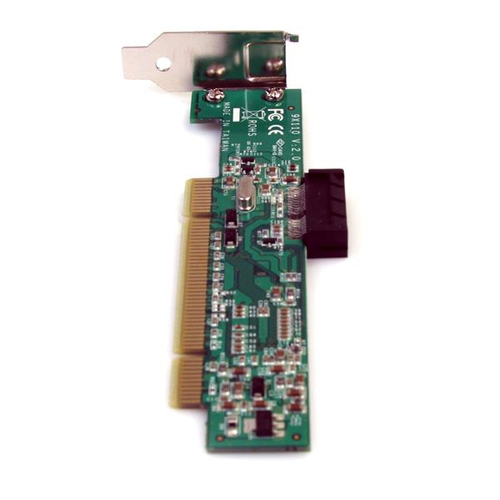

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

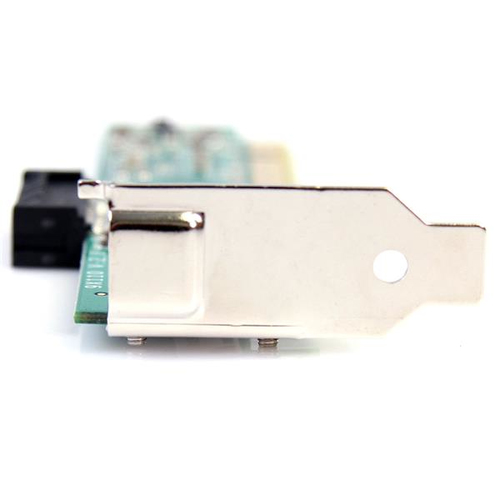

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
Specifications
Ports & interfaces
| Host interface | PCI |
|---|
| Output interface | PCIe |
|---|
| Expansion card standard | PCI 2.3 |
|---|
Design
| Internal | Yes |
|---|
| Certification | CE, FCC, TAA |
|---|
Features
| Chipset | Pericom - PI7C9X111SL |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
|---|
| Storage temperature (T-T) | -10 - 95 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 60 mm |
|---|
| Depth | 135 mm |
|---|
| Height | 20 mm |
|---|
| Weight | 32 g |
|---|
Packaging data
| Quantity | 1 |
|---|

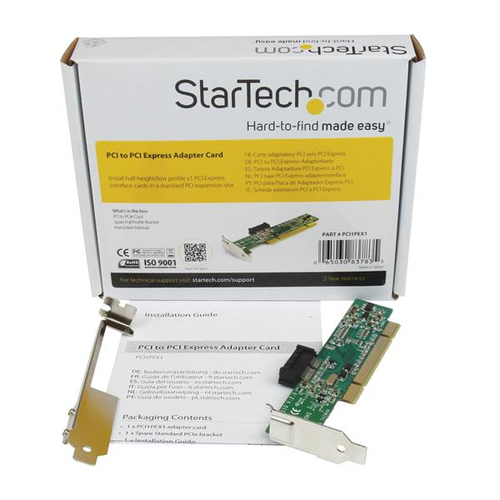

| Manual | Yes |
|---|
| Package width | 143 mm |
|---|
| Package depth | 175 mm |
|---|
| Package height | 33 mm |
|---|
| Package weight | 102 g |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
| Products per master (outer) case | 75 pc(s) |
|---|
| Master (outer) case width | 352 mm |
|---|
| Master (outer) case length | 690 mm |
|---|
| Master (outer) case height | 314 mm |
|---|
