StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
Part number MST14CD123HD
3-PORT USB-C MST HUB HDMI - TRIPLE 4K 60HZ WINDOWS ONLY
- MULTI-MONITOR CONFIGURATION: USB Type-C to Triple-HDMI MST Hub/Splitter drives up to three 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU

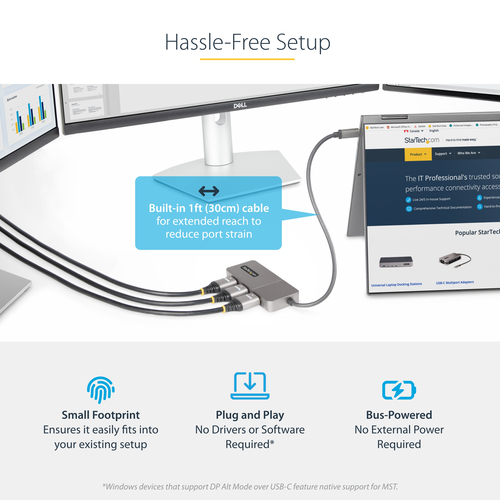

- EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 USB C devices like Surface Pro 7/8, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter
- Manufacturer
- StarTech.com
- Part number
- MST14CD123HD
- Condition
- New
- Category
- Professional Sound › Pro Sound & ENT
Overview
Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitors
This USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
Multi-Tasking Made Easy
Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.
Host Connection
Max Resolution
Output 1
Max Resolution
Output 2
Max Resolution
Output 3
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
*Some Intel 11th Gen
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 30Hz
4K 30Hz
4K 30Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Specifications
| USB connector type | USB Type-C |
|---|---|
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| High Dynamic Range (HDR) supported | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics VMM5310 |
| Product colour | Grey |
|---|---|
| Housing material | Plastic |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
|---|

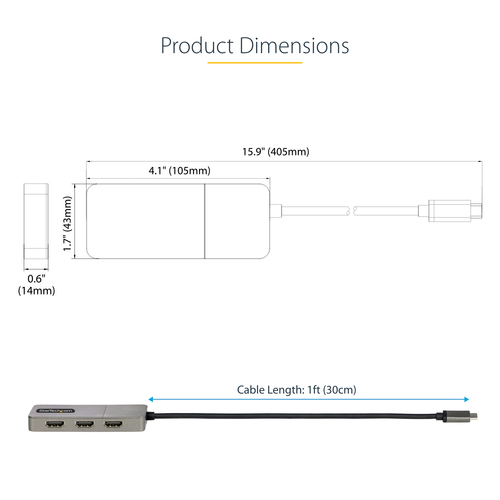

| Width | 43 mm |
|---|---|
| Depth | 105 mm |
| Height | 14 mm |
| Weight | 72 g |
| USB cable length | 0.3 m |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Package width | 145 mm |
|---|---|
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 124 g |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 70 pc(s) |
|---|---|
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
