StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives - TAA
Part number MSAT2SAT3
MSATA TO SATA ADAPTER 2.5IN 3.5IN SATA DRIVES CONVERTER
- IMPROVE STORAGE CAPACITY: This mSATA to SATA adapter enables support of 2.5in and 3.5in SATA drives from an existing mSATA host port; A cost-effective solution to increase your system storage by adding a higher capacity SATA drive to your PC
- ADD SATA CONNECTIVITY: The mSATA to SATA converter also supports 3.5in SATA devices such as optical disk drives from an existing mSATA port
- CONVENIENT SETUP: This mSATA to SATA adapter includes a mounting screw kit and installs directly onto the motherboard; Supports any operating system, no software or drivers required
- COMPATIBILITY: mSATA to SATA adapter supports SATA III (6 Gbps) and is backward compatible with SATA I/II; Supports 2.5/3.5in SATA drives and SATA devices (Blu-ray, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk); Additional power required for 3.5in SATA devices
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this mSATA to SATA adapter is backed for 2 years, including free lifetime 24/5 multi-lingual assistance
- Manufacturer
- StarTech.com
- Part number
- MSAT2SAT3
- Condition
- New
- Category
- Computer Systems › Server Computers
- 1GPA category
- Hardware
Overview
Turn an mSATA host connection into a standard SATA port

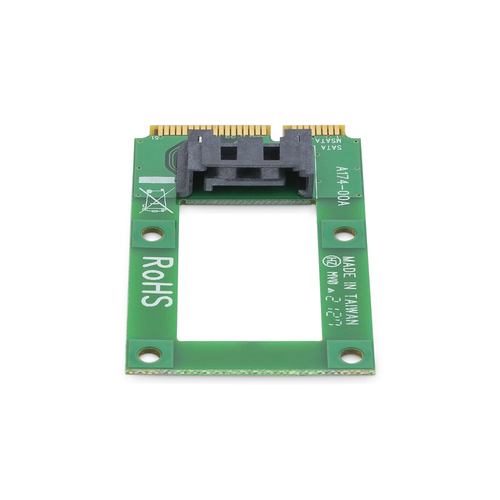

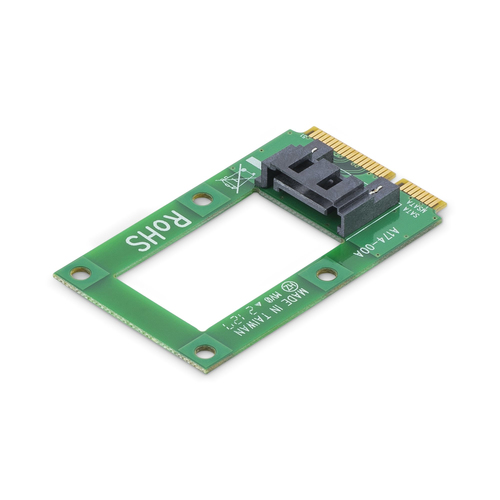

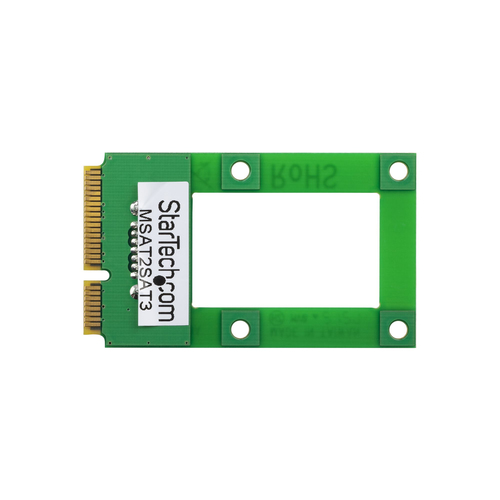

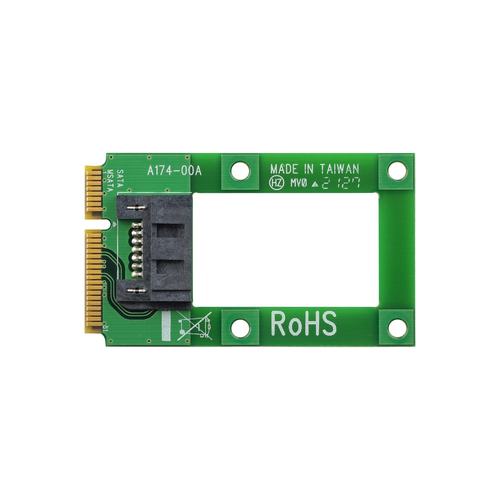

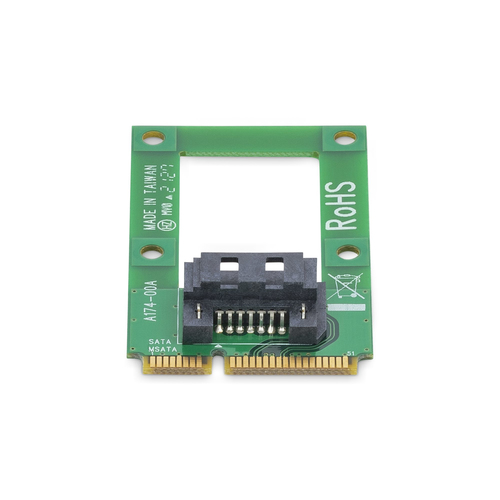

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Host interface | mSATA |
|---|---|
| Output interface | SATA |
| SATA revision | 3.0 |
| Internal | Yes |
|---|---|
| Product colour | Green |
| Data transfer rate (max) | 6 Gbit/s |
|---|
| Operating temperature (T-T) | 5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 15 - 90% |
| Compliance certificates | CE, RoHS |
|---|
| Width | 30 mm |
|---|---|
| Depth | 51 mm |
| Height | 8 mm |
| Weight | 10 g |
| Screws included | Yes |
|---|---|
| User guide | Yes |
| Package width | 126 mm |
| Package depth | 150 mm |
| Package height | 14 mm |
| Package weight | 15 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 686 mm |
| Master (outer) case height | 218 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
