StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz) NIC, M.2 B+M Key, PCIe Ethernet Interface, For SFF/Desktop PCs - TAA
Part number MR12GI-NETWORK-CARD
2.5G M.2 NETWORK CARD INTEL NBASE-T PCIE ETHERNET NIC/LAN
- 1-PORT 2.5GbE M.2 NETWORK CARD: High-performance M.2 Ethernet 2.5Gbps network card with Intel I225-V-chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T (802.3bz); PCI Express M2 2280 B or M key compatible

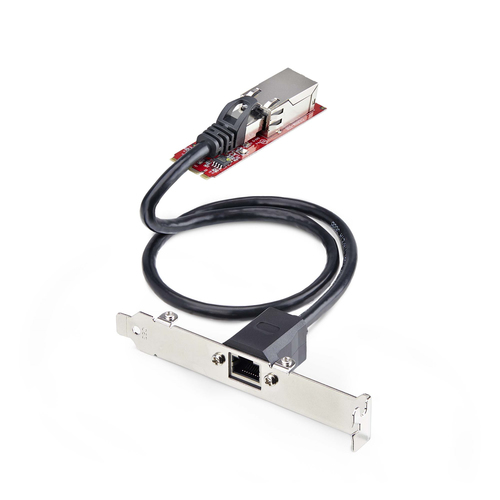

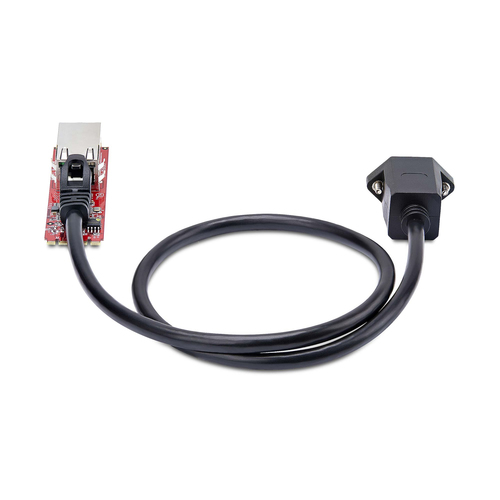

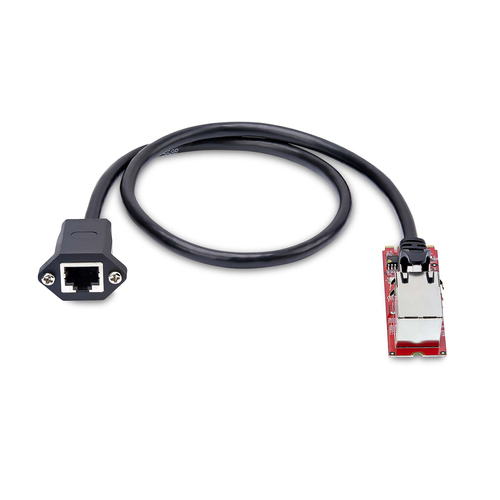

- M.2 INTERFACE: M.2 2280 form factor is ideal for upgrading systems that do not have PCIe expansion slots or where slots are already in use; Includes 2ft (60cm) M/F Cat6 cable adapter for running Ethernet port to full/low-profile bracket on the rear of the PC
- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5/1Gbps and 100/10Mbps) with auto-negotiation; Supports B or M key M.2 PCIe Gen 2 slots; Network interface card for PC is compatible with Windows/Linux; Full and low profile bracket included
- IT MANAGEMENT: Intel vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5 GbE M.2 NIC is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
- Manufacturer
- StarTech.com
- Part number
- MR12GI-NETWORK-CARD
- Condition
- New
- Category
- Network Devices › Wireless Networking
- 1GPA category
- Hardware
Overview

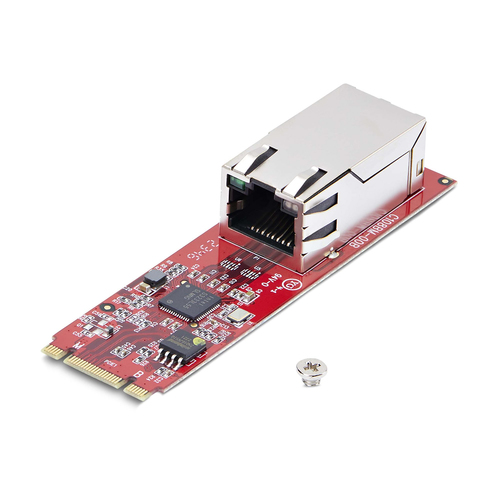

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T
This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

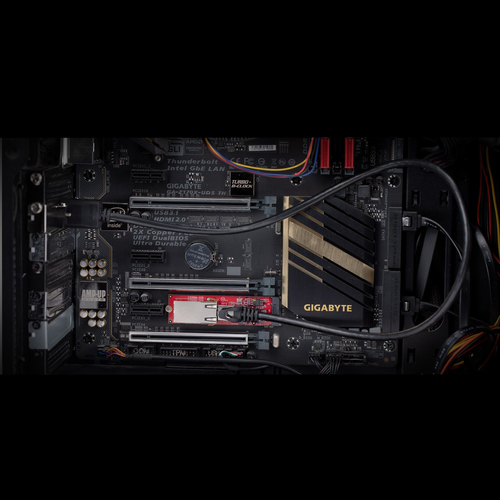

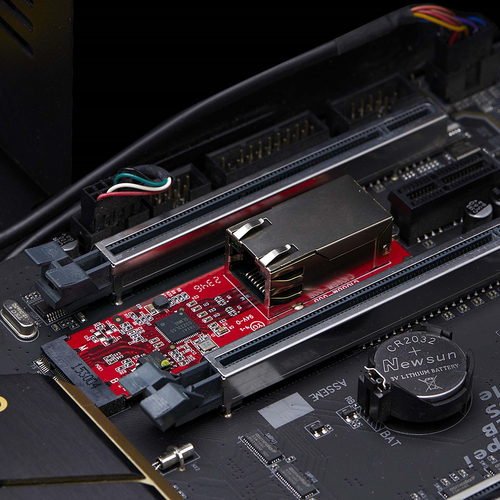

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
Specifications
| Connectivity technology | Wired |
|---|---|
| Host interface | M.2 |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.0 |
| Maximum data transfer rate | 2500 Mbit/s |
|---|---|
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | NBase-T |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Component for | PC/Server |
|---|---|
| Product colour | Red |
| Internal | Yes |
| Chipset | Intel I225-V |
| LED indicators | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|---|
| Sustainability compliance | Yes |
|---|
| Width | 80 mm |
|---|---|
| Depth | 22 mm |
| Height | 15 mm |
| Weight | 15 g |
| Package width | 143 mm |
|---|---|
| Package depth | 176 mm |
| Package height | 33 mm |
| Package weight | 170 g |
| Mounting brackets included | Yes |
|---|---|
| Packaging content | CAT6 Cable Adapter |
| Compliance certificates | Trade Agreements Act (TAA) |
|---|
| Master (outer) case width | 500 mm |
|---|---|
| Master (outer) case length | 380 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 60 pc(s) |
| Quick start guide | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
